Mercedes A6296800055 - LU INSTRUMENTENTRAEG

O580 TRAVEGO 15RHD 629.011

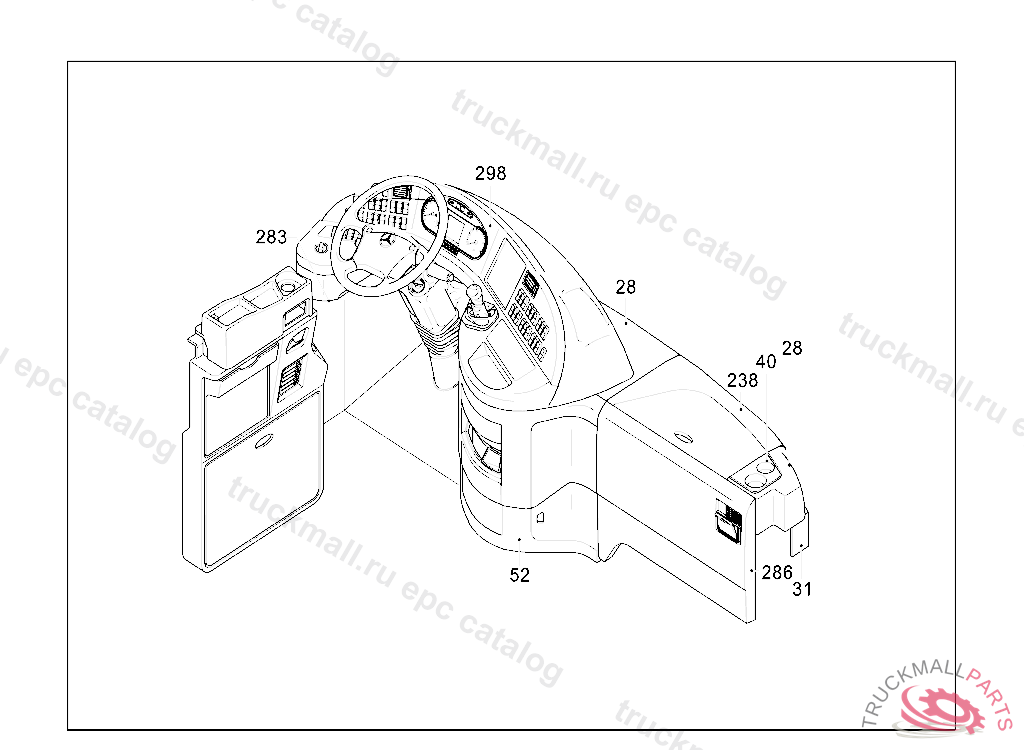

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 1

Поз.
Артикул
Описание
28
A6296800106
PANELLING
31
A6298300023
AIR DUCT
40
A6296800214
BRACKET CUP HOLDER
52
A6296800031
CONSOLE
238
A6296800017
COVER REFRIGERATOR
283
A6296800206
PANELLING LEFT
286
A6296800406
PANELLING RIGHT
298
A6296800055
INSTRUMENT SUPPORT
999
A0009870712
BASE RAIL EDGE GUARD SECTION, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0019907291
CLIP FASTENERM5
999
A0029885081
FASTENER BUTTON
999
A0059909340
WASHER
999
A3028120034
SPRING
999
A6294620129
CLAMPING PIECE PANELLING
999
A6296800414
BRACKET
999
A6296870214
BRACKET
999
A6296890085
PANELLING FRONT COVER
999
A9424600895
COVERING STEERING COLUMN PANELLING, NO.5B21I.........I.........I I II
999
N910105005010
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
