Mercedes A6296870319 - AUFLAGE VORNE

O580 TRAVEGO 15RHD 629.011

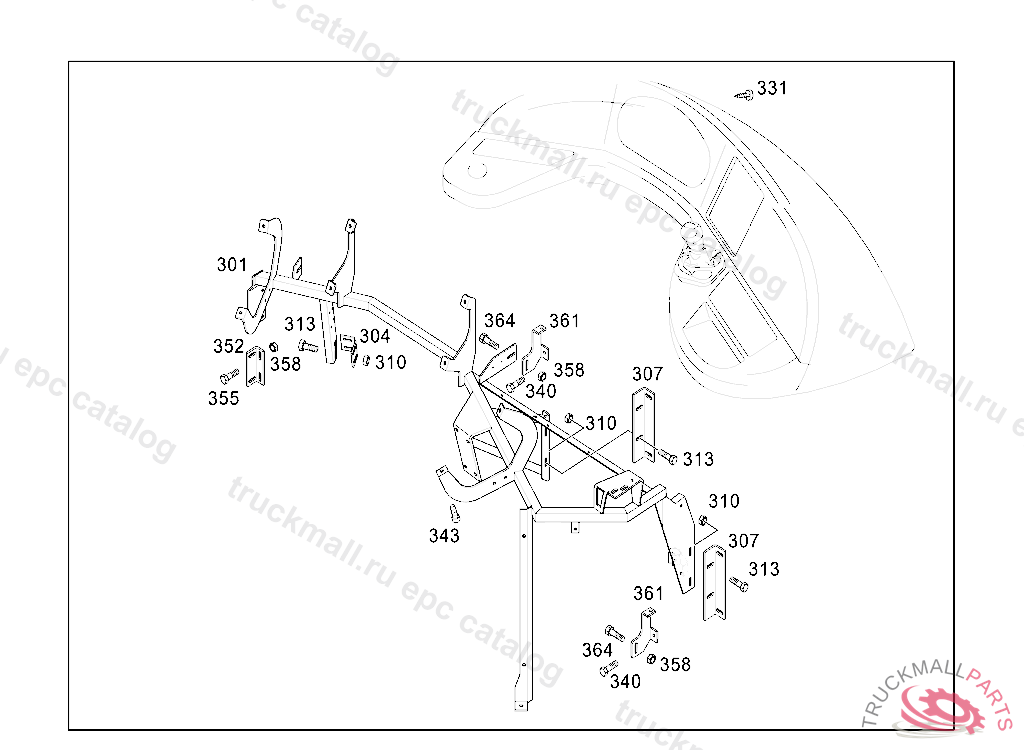

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 9

Поз.
Артикул
Описание
301
A6296800155
BEAM SUPPORT STRUCTURE
304
A6296870612
ANGLE LEFT BULKHEAD
307
A6296870712
ATTACHMENT ANGLE BRACKET RIGHT BULKHEAD
310
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
313
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
313
N910105006004
SCREW , Replaced By: N914146006102
331
N000000000455
TAPPING SCREW. SHEET METAL SCREW REAR BUMPER
340
N000933006148
SCREW BRACKET TO CONSOLE
343
A0039908812
SCREWM6X12 TX30
352
A6296871312
ATTACHMENT ANGLE BRACKET
355
N000933006148
SCREW BRACKET TO CONSOLE
358
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
361
A6296870319
REST FRONT
364
N910105006002
HEXAGON HEAD BOLT
999
A0009870712
BASE RAIL EDGE GUARD SECTION, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0019907291
CLIP FASTENERM5
999
A0029885081
FASTENER BUTTON
999
A0059909340
WASHER
999
A3028120034
SPRING
999
A6294620129
CLAMPING PIECE PANELLING
999
A6296800414
BRACKET
999
A6296870214
BRACKET
999
A6296890085
PANELLING FRONT COVER
999
A9424600895
COVERING STEERING COLUMN PANELLING, NO.5B21I.........I.........I I II
999
N910105005010
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
