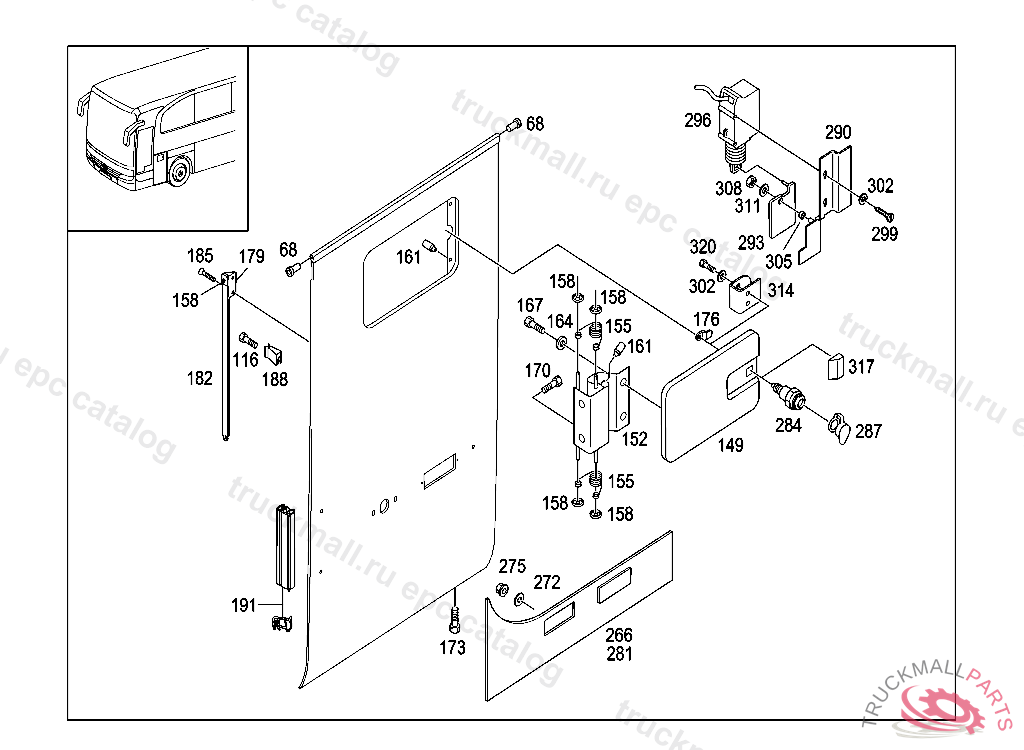

Поз.
Артикул
Описание
68
BUSHING
116
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
149
FLAP
152
HINGE
155
SPRING
158
FUSE JACKET TUBE WIRING HARNESS FASTENING
161
RUBBER BUFFER
164
WASHER COVERING TO CAB
167
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
167
SCREW , Replaced By: N914146006102
170
SCREW BRACKET AND CLAMP M6X20
173
SCREW , Replaced By: N910143008002
176
LATCH
179
ANGLE
182
RAIL
185
HEXAL. SOCKET CSK. BOLTM6X10 TX30
185
SCREWM6X12 TX30
188
SPRING
191
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
266
ORNAMENTAL COVER
272
WASHER
275
NUT MOUNTING FRAME TO SUPPORT M6
281
FOIL
284
LOCK HOUSING , STATE LOCK NUMBER WHEN ORDERING
287
CAP
290
BRACKET
293
FASTENER
296
MOTOR
299
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
302
WASHER BRACKET TO SUPPORT
305
SLEEVE
308
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
311
WASHER HYDRAULIC LINE TO CAB
314
BRACKET
317
HANDLE
320
SCREWM4X8
999
FLAP
999
WELT , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
