Mercedes A6296951200 - VERKLEIDUNG,DECKENPL

O580 TRAVEGO 15RHD 629.011

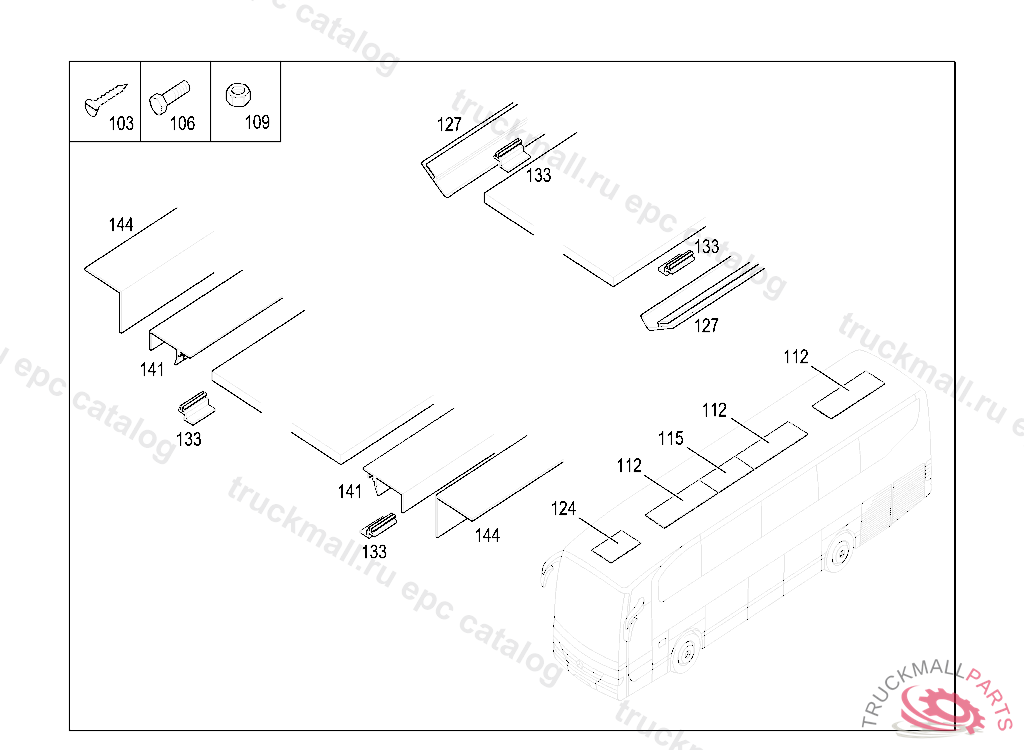

69 PANELLING AND LINING - 090 ROOF INTERIOR PANELLING IL. 3

Поз.
Артикул
Описание
103
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
103
A0029908922
SCREW F CRANKCASEM8X30
103
N910105006004
SCREW , Replaced By: N914146006102
106
Q0200933027
SCREWM8X40
106
Q0200933022
SCREWM8X20
109
N000934006006
NUT
109
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
112
A6296951200
PANELLING COVER PLATE L2300MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
115
A6296951300
PANELLING COVER PLATE L464MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
124
A6296951600
PANELLING COVER PLATE L1255MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
127
A6296950035
RAIL AIR OUTLET, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
133
A6296950009
CLIP DOME
141
A6296951135
RAIL DOME L500MM
144
A6298360012
ANGLE DOME
999
A6296950088
RETAINER PROFILE C-RAIL 150X40X15,3MM
999
A6296950235
RAIL DOME
999
A6296950935
RAIL DOME
999
A6296951400
PANELLING COVER PLATE L1494MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
