Mercedes A6296601030 - ZB TRAEGER

O580 TRAVEGO 17RHD 629.012

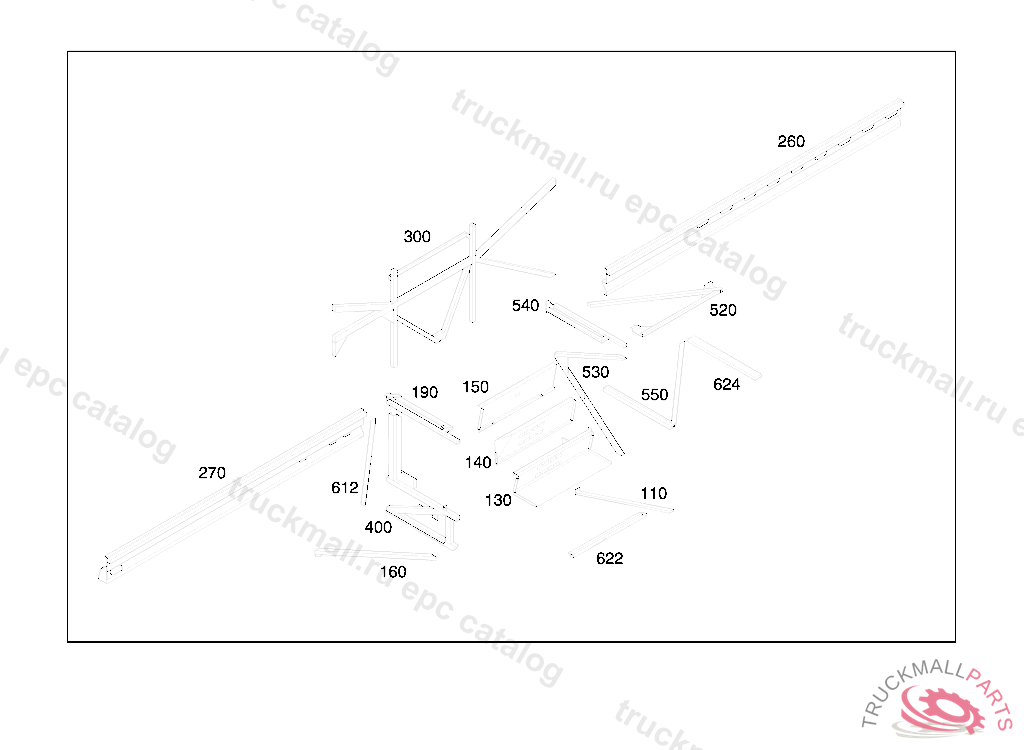

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 1

Поз.
Артикул
Описание
110
A6296600422
FRAME PART BOTTOM
110
A6296603222
FRAME PART BOTTOM
110
A6296662532
STRUT BOTTOM L1160MM
130
A6296603028
STEP BOTTOM L960MM
140
A6296603128
STEP CENTRAL 960LG
150
A6296603228
STEP TOP 960LG, Replaced By: A6296609728
150
A6296606128
ROCKER PANEL TOP
160
A6296601030
SUPPORT
160
A6296600930
SUPPORT BOTTOM
190
A6296602422
FRAME PART963LG
190
A6296600068
PEDESTAL
190
A6296600368
PEDESTAL
190
A6296602722
FRAME PART
190
A6296600822
FRAME PART935LG
260
A6296101115
SIDE MEMBER FRONT RIGHT L3907MM
260
A6296101215
SIDE MEMBER FRONT RIGHT L3727MM
270
A6296101415
SIDE MEMBER REAR RIGHT 3247MM
270
A6296101315
SIDE MEMBER
300
A6296600730
SUPPORT CROSS MEMBER 5-7/2805X1060MM
300
A6296600630
SUPPORT CROSS MEMBER 5-7/2805X1060MM
300
A6296602430
SUPPORT CROSS MEMBER 5-7/2805X1060MM
400
A6296600322
FRAME PART
400
A6296602522
FRAME PART
520
A6296105123
SUPPORT TOP
520
A6296103923
SUPPORT TOP
530
A6296603122
FRAME PART BOTTOM
540
A6296602622
FRAME PART FRONT ENTRANCE L935MM
550
A6296603022
FRAME PART BOTTOM
550
A6296603322
FRAME PART BOTTOM
612
A6296602830
STRUT. SUPPORT
612
A6296664632
STRUT1358LG, Replaced By: A6296602730
612
A6296664732
STRUT
612
A6296602730
SUPPORT
622
A6296661910
SUPPORT BOTTOM 941LG
622
A6296662010
SUPPORT BOTTOM 852LG
999
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A6296600330
SUPPORT
999
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
