Главная
›
Mercedes
›
BUS
›
O580 TRAVEGO 17RHD
›
629.012
›

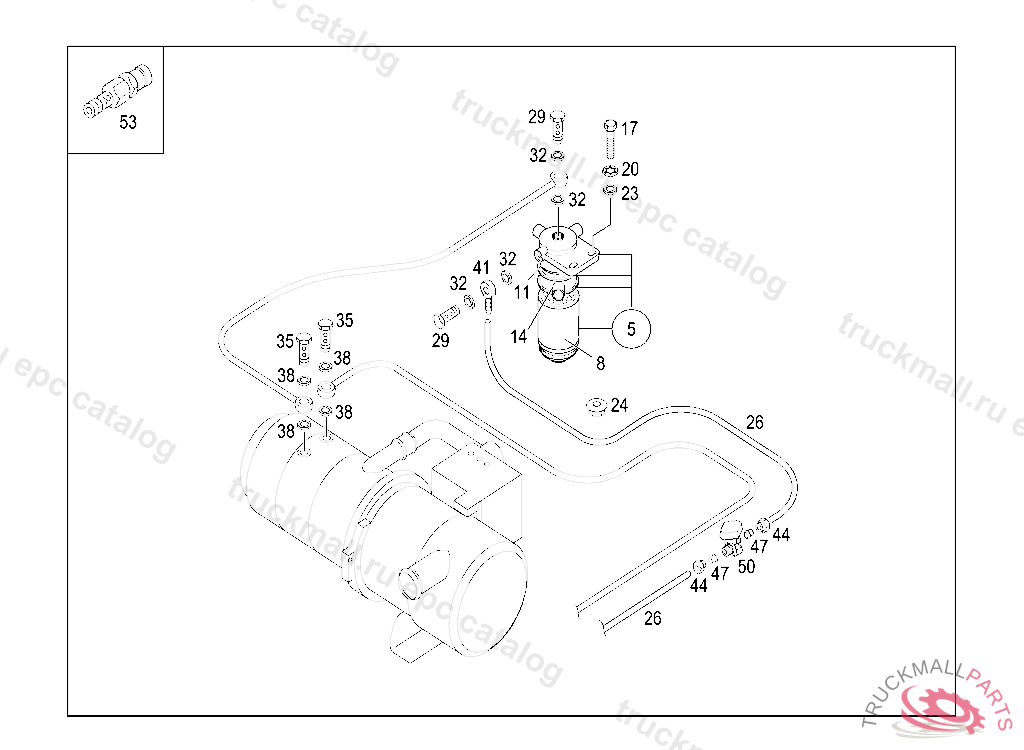

83 HEATING AND VENTILATION
›
390 FUEL-OIL PIPES
Mercedes A6298300077 - ZB HEIZOELLEITUNG MI
O580 TRAVEGO 17RHD 629.012
83 HEATING AND VENTILATION - 390 FUEL-OIL PIPES
Поз.
Артикул
Описание
5
A0008302618
FILTER
5
A0008302518
FILTER
8
Q8311997648
FILTER CARTRIDGE
11
Q8319128168
FULL FACE GASKET
14
Q8319128162
ADAOTER
17
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
20
A0009943710
LOCK LEVER TO TRANSMISSION
23
N000000003250
WASHER BRACKET TO CAB REAR PANEL
24
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
26
A6298300077
PIPE LINE
26
A6298320017
PIPE LINE
29
N915036010200
HOLLOW SCREW
32
N007603014102
SEALING RING. SEAL RING ENGINE BREATHING
35
N915036006200
HOLLOW SCREW BREATHER LINE TO HEAT EXCHANGER
38
N007603010110
SEAL RING PNEUMATIC VALVE
41
A6295000024
BREATHER PIPE
44
N915017010200
NUT. UNION NUT RETURN
47
N915003008200
BALL-TYPE NIPPLE
50
A0028306984
SHUT-OFF VALVE
53
A0048201210
SWITCH
999
N007603012111
SEAL RING LINE CONNECTION
