Mercedes A6299190092 - Klammer

O580 TRAVEGO 17RHD 629.012

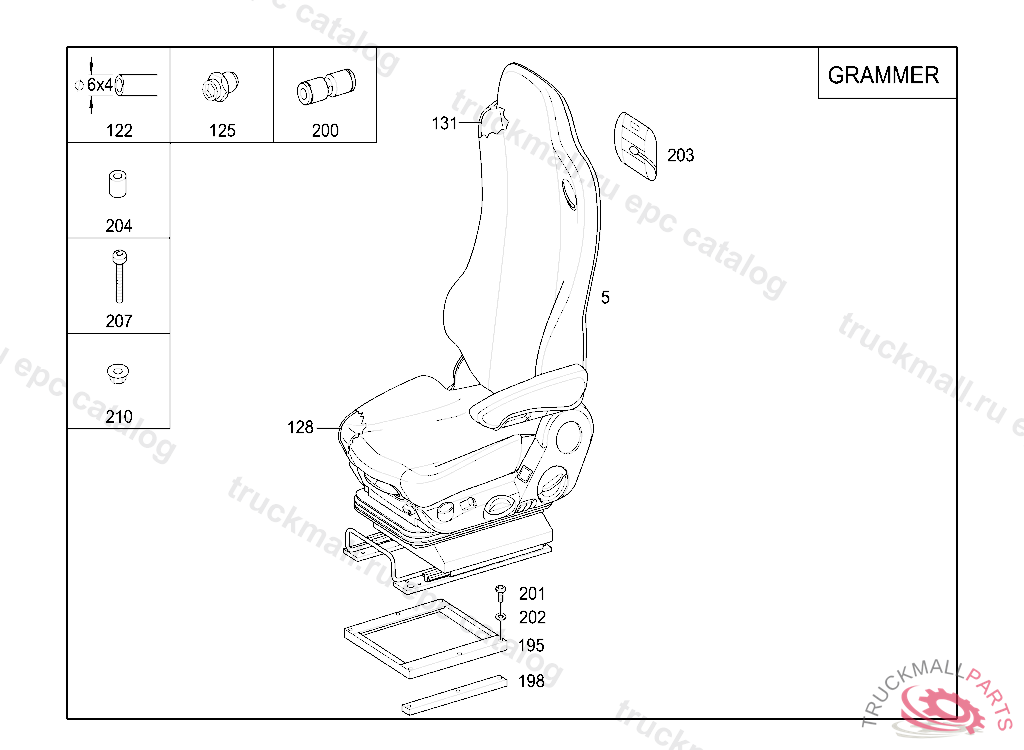

91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT IL. 1

Поз.
Артикул
Описание
5
A6289104301
FRONT SEATMGS 90.5 GRAMMER, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
122
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
125
A0039903068
FITTING6X1/M16X1.5 RAUFOSS
128
A6279100546
COVER COVER TO SEAT CUSHION, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
128
A6329100046
COVER COVER TO SEAT CUSHION, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
131
A6279100247
COVER COVER TO BACKREST, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
195
A6299100557
CONSOLERAL 7021 SM
195
A6299100257
CONSOLE 50 MM INCREASE RAL 7021 SM, Replaced By: A6299100557
198
A6299110731
CONSOLE LEFT
198
A6299110831
CONSOLE RIGHT
200
A0019979289
COUPLING DRIVER'S SEAT SA 48084
201
A0099900104
SCREWM10X60 T50, Replaced By: A0009902129
201
A0009902129
SCREWM10X80 T50
201
A0029906622
SCREWM 8X12
201
A0089908404
SCREWM10X40T50
202
N000125008445
WASHER PUMP TO CONSOLE
203
A6299100106
SEAT CUSHION LESS COVER DRIVER SEAT HANDS-FREE SYSTEM
204
A0009924320
SLEEVE12X2X11
207
N000000001153
HEXALOBULAR BOLT
210
N913023008003
NUT HORN TO BRACKET M8
999
N000000002862
EYELET
999
A6299190092
CLIP
999
A6299190082
WASHER
999
A0009830615
CORD
