Mercedes A6293280108 - BEFESTIGUNGSWINKEL

O580 TRAVEGO 17RHD 629.012

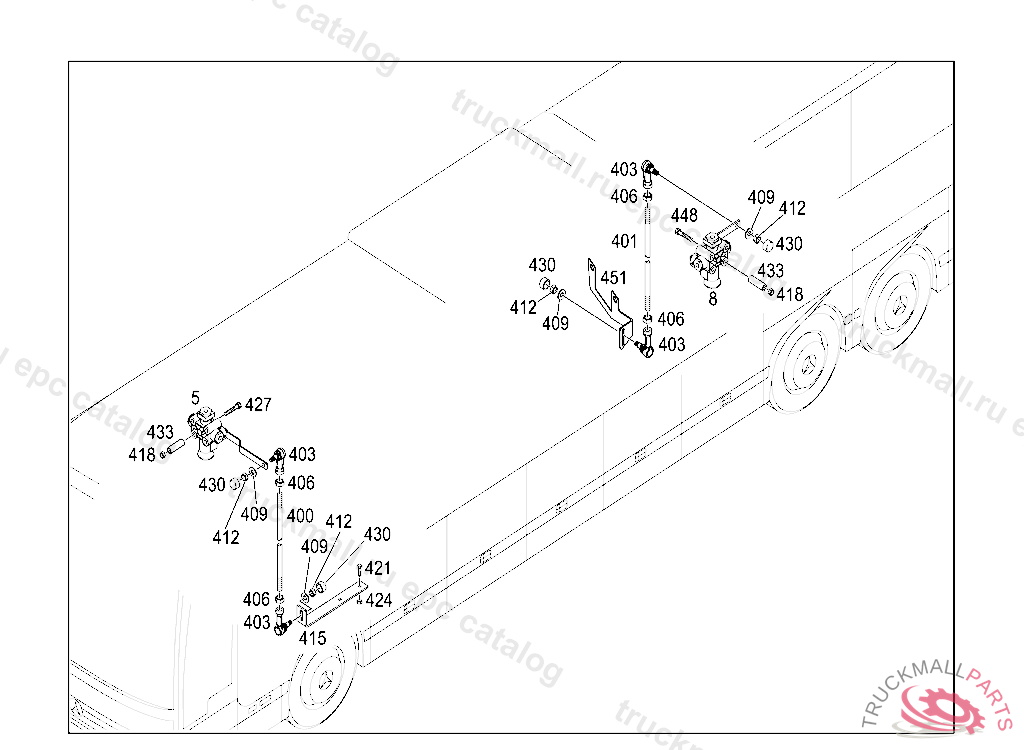

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 6

Поз.
Артикул
Описание
5
A0003278825
VALVE FRONT AXLE
5
A0003285030
VALVE REAR AXLE
5
A0003279225
VALVE FRONT AXLE
5
A0003277825
VALVE , Replaced By: A0003285030
8
A0003284630
VALVE , Replaced By: A0003284930
8
A0003284930
VALVE REAR AXLE
400
A6293280234
RODM8/515LG
401
A6293280134
RODM8/70LG
403
A0019962545
ANGLE JOINTA13
403
A0003280063
JOINTA13, Replaced By: A0019962545
406
N304032008006
NUT
409
N000000003250
WASHER BRACKET TO CAB REAR PANEL
409
N000125008445
WASHER PUMP TO CONSOLE
412
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
412
N913023008003
NUT HORN TO BRACKET M8
415
A6293270140
BRACKET
418
N913023008003
NUT HORN TO BRACKET M8
421
N910105006005
SCREW , Replaced By: N000000001479
424
N913023006002
NUT BRACKET TO FIRE WALL
427
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
427
N910105008006
SCREW VALVE TO BRACKET M 8X60
427
N910143008013
HEXALOBULAR BOLT. SCREW , Replaced By: N910105008024
427
N910105008046
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
430
N913018013202
PROTECTION CAP MOUNTING TO BODY
433
A0003270253
SPACER SLEEVE. SPACER TUBEL46MM
433
A0003280053
SPACER TUBE
448
N910105008043
SCREW , Replaced By: N910143008010
451
A6293280108
MOUNTING ANGLE
