Mercedes
BUS
O580 TRAVEGO 17RHD
629.012
32 SPRINGS AND SUSPENSION

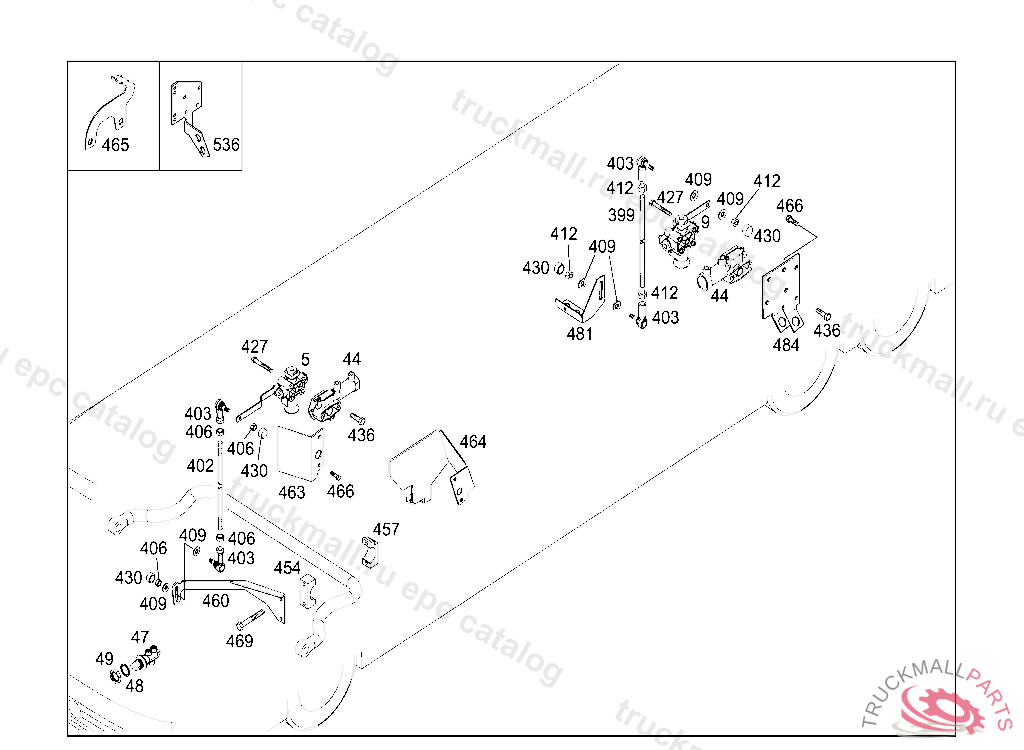

060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 9

Mercedes A6293280840 - HALTER RE

O580 TRAVEGO 17RHD 629.012

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 9

Поз.
Артикул
Описание
5
A0003278825
VALVE FRONT AXLE
5
A0003285030
VALVE REAR AXLE
5
A0003279225
VALVE FRONT AXLE
5
A0003277825
VALVE , Replaced By: A0003285030
9
A0003282425
VALVE DRIVING AXLE LEFT
9
A0003285030
VALVE REAR AXLE
9
A0003282525
VALVE DRIVING AXLE RIGHT
44
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
47
A0003277725
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
48
A0059903940
WASHER
49
A0049906351
NUT VALVE TO BRACKET
399
A6293280534
RODM8/140LG
402
A6293280634
RODM8/160LG
403
A0019962545
ANGLE JOINTA13
403
A0003280063
JOINTA13, Replaced By: A0019962545
406
N304032008006
NUT
409
N000000003250
WASHER BRACKET TO CAB REAR PANEL
409
N000125008445
WASHER PUMP TO CONSOLE
412
N913023008003
NUT HORN TO BRACKET M8
412
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
427
N910105008006
SCREW VALVE TO BRACKET M 8X60
427
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
427
N910143008013
HEXALOBULAR BOLT. SCREW , Replaced By: N910105008024
427
N910105008046
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
430
N913018013202
PROTECTION CAP MOUNTING TO BODY
436
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
454
A6293270021
COVER
457
A6293270121
COVER
460
A6293230015
LEVER
463
A6293270086
PROTECTIVE PLATE
464
A0003270286
PROTECTIVE PLATE
465
A0003270740
BRACKET
466
N910105008041
SCREW , Replaced By: N910143008000
469
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
481
A6293280640
BRACKET LEFT
481
A6293280740
BRACKET RIGHT
484
A6293280840
BRACKET RIGHT
484
A6293280540
BRACKET LEFT
536
A6323280140
BRACKET RIGHT
536
A6293281040
BRACKET RIGHT
536
A6293280940
BRACKET LEFT
536
A6323280040
BRACKET LEFT
