Главная
›
Mercedes
›
BUS
›
O580 TRAVEGO 17RHD
›
629.012
›
62 FRONT PANEL
›

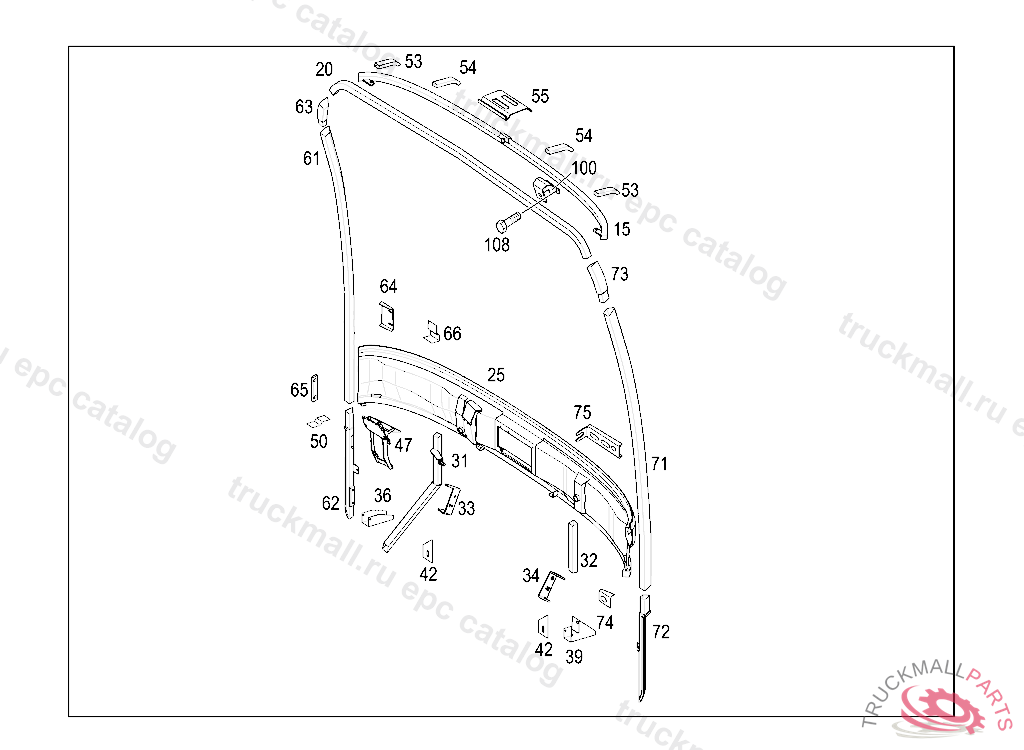

030 FRONT PANEL IL. 1
Mercedes A6296201315 - ZB KONSOLE/LENKKONSO
O580 TRAVEGO 17RHD 629.012
62 FRONT PANEL - 030 FRONT PANEL IL. 1
Поз.
Артикул
Описание
15
A6296202230
SUPPORT WINDSHIELD,TOP
20
A6296520402
ROOF BOW TOP L2275MM
25
A6296200008
FRONT PANEL
31
A6296200613
PILLAR LEFT
32
A6296200713
PILLAR RIGHT
33
A6296200015
CONSOLE LEFT LOCK
34
A6296200115
CONSOLE RIGHT LOCK
36
A6296120224
BRACKET
39
A6296121024
BRACKET
42
A6296210105
GUSSET PLATE
47
A6296200415
CONSOLE STEERING COLUMN, Replaced By: A6296201315
47
A6296201315
CONSOLE STEERING COLUMN
50
A6296221014
BRACKET TOEBOARD
53
A6296510040
CONNECTION OUTSIDE L213MM
54
A6296510140
CONNECTION INSIDE 236LG
55
A6296500016
REINFORCEMENT TOP
61
A6296210013
CENTRAL PILLAR UPPER PART, LEFT
62
A6296210813
CENTRAL PILLAR LOWER PART, LEFT
63
A6296240205
CONNECTION LEFT L228MM
64
A6296210018
BRACKET COCKPIT 126X79
65
A6296210111
PLATE TOP
66
A6296221714
BRACKET DRIVER TABLE
71
A6296201413
PILLAR UPPER PART,RIGHT
72
A6296210913
CENTRAL PILLAR LOWER PART, RIGHT
73
A6296240305
CONNECTION RIGHT L228MM
74
A6296210212
ANGLE FRONT PASSENGER TABLE 62X65
75
A6296210030
CONSOLE FRONT PASSENGER TABLE 90X302MM
100
A6296200514
BRACKET
108
N910105008039
SCREW , Replaced By: N910143008002
999
A6296220814
BRACKET120X287MM
999
A6296220914
BRACKET96X121MM
