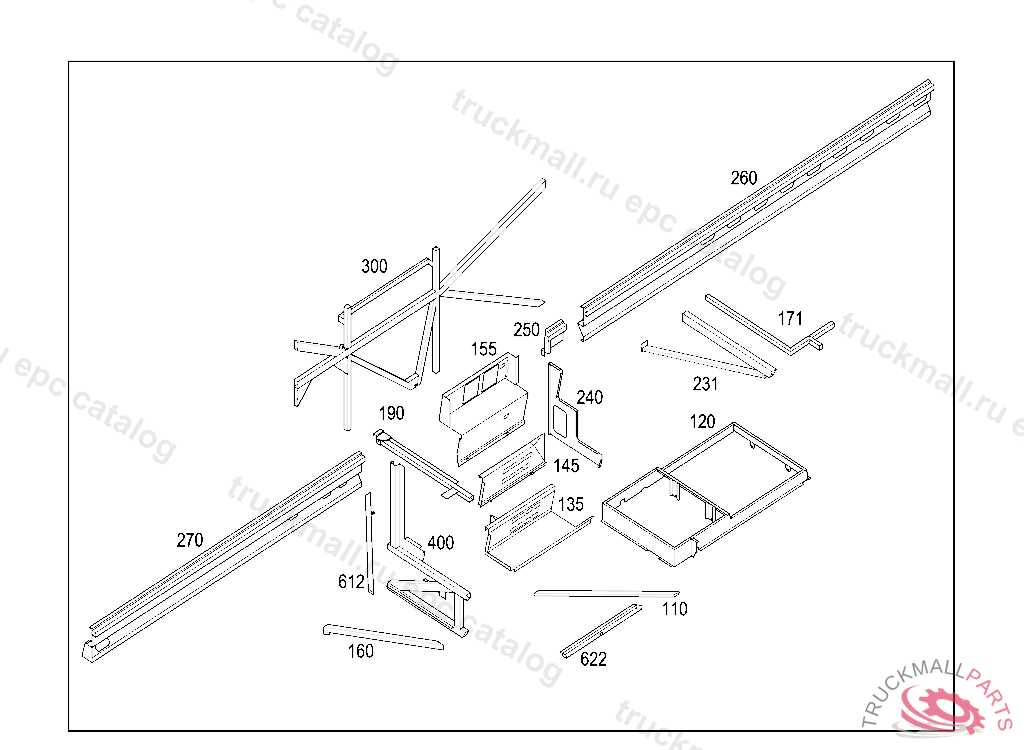

Mercedes A6296609422 - ZB MONTAGERAHMEN

O580 TRAVEGO 17RHD 629.012

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 2

Поз.
Артикул
Описание
110
A6296603222
FRAME PART BOTTOM
110
A6296662532
STRUT BOTTOM L1160MM
110
A6296600422
FRAME PART BOTTOM
120
A6296605722
FRAME PART UNDER TOILET
120
A6296600478
FRAME PART UNDER TOILET
120
A6296601122
FRAME PART UNDER TOILET
135
A6296608428
STEP
145
A6296608528
STEP
155
A6296608628
STEP
160
A6296600930
SUPPORT BOTTOM
160
A6296601030
SUPPORT
171
A6296609422
FRAME RIGHT
190
A6296602722
FRAME PART
190
A6296600368
PEDESTAL
190
A6296600068
PEDESTAL
190
A6296602422
FRAME PART963LG
190
A6296600822
FRAME PART935LG
231
A6296660210
SUPPORT
240
A6296600136
SIDE PANEL FRONT 621X583MM
240
A6296600636
SIDE PANEL
240
A6296600036
SIDE PANEL FRONT 621X583MM
240
A6296600336
SIDE PANEL FRONT 621X583MM
250
A6296601023
FRAME PART TOP
250
A6296600123
FRAME PART TOP
260
A6296101215
SIDE MEMBER FRONT RIGHT L3727MM
260
A6296101115
SIDE MEMBER FRONT RIGHT L3907MM
270
A6296101315
SIDE MEMBER
270
A6296101415
SIDE MEMBER REAR RIGHT 3247MM
300
A6296602430
SUPPORT CROSS MEMBER 5-7/2805X1060MM
300
A6296600730
SUPPORT CROSS MEMBER 5-7/2805X1060MM
300
A6296600630
SUPPORT CROSS MEMBER 5-7/2805X1060MM
400
A6296602522
FRAME PART
400
A6296600322
FRAME PART
612
A6296602830
STRUT. SUPPORT
612
A6296664632
STRUT1358LG, Replaced By: A6296602730
612
A6296602730
SUPPORT
612
A6296664732
STRUT
622
A6296662010
SUPPORT BOTTOM 852LG
622
A6296661910
SUPPORT BOTTOM 941LG
999
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A6296600330
SUPPORT
999
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
