Mercedes A6296951200 - VERKLEIDUNG,DECKENPL

O580 TRAVEGO 17RHD 629.012

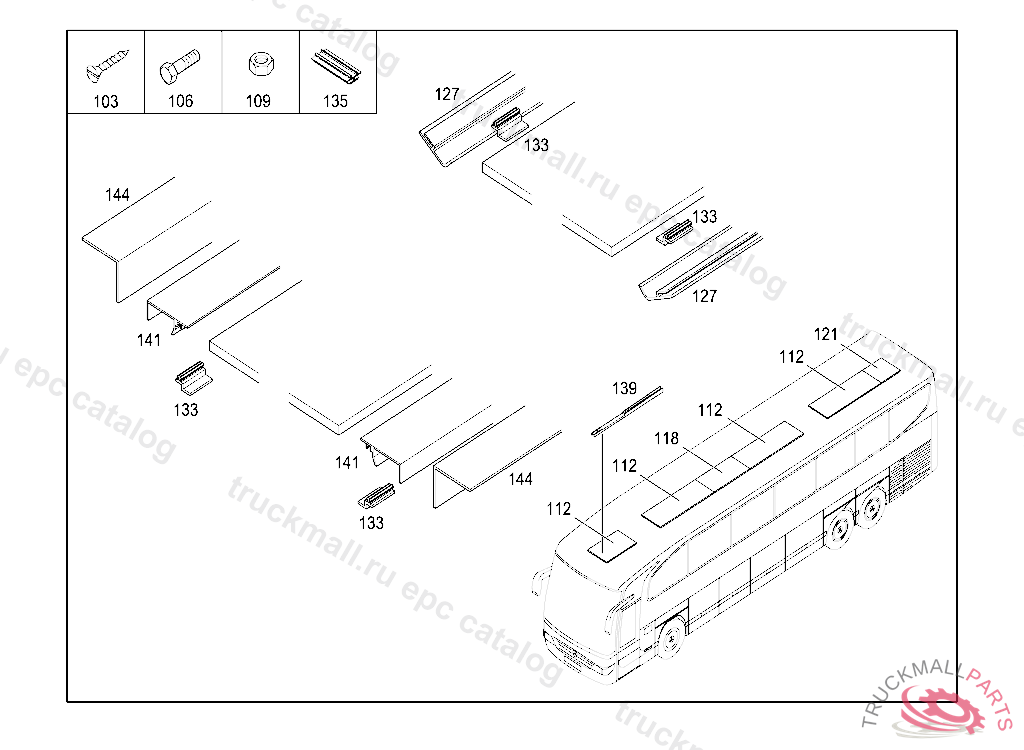

69 PANELLING AND LINING - 090 ROOF INTERIOR PANELLING IL. 3

Поз.
Артикул
Описание
103
A0029908922
SCREW F CRANKCASEM8X30
103
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
103
N910105006004
SCREW , Replaced By: N914146006102
106
Q0200933022
SCREWM8X20
106
Q0200933027
SCREWM8X40
109
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
109
N000934006006
NUT
112
A6296951200
PANELLING COVER PLATE L2300MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
118
A6296951400
PANELLING COVER PLATE L1494MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
121
A6296951500
PANELLING COVER PLATE L817MM
127
A6296950035
RAIL AIR OUTLET, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
133
A6296950009
CLIP DOME
141
A6296951135
RAIL DOME L500MM
144
A6298360012
ANGLE DOME
999
A6296950088
RETAINER PROFILE C-RAIL 150X40X15,3MM
999
A6296950095
COVERING
999
A6296950235
RAIL DOME
999
A6296950935
RAIL DOME
999
A6296951600
PANELLING COVER PLATE L1255MM, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
