Mercedes A6299841175 - FOLIE RADKASTEN RE

O580 TRAVEGO 17RHD 629.012

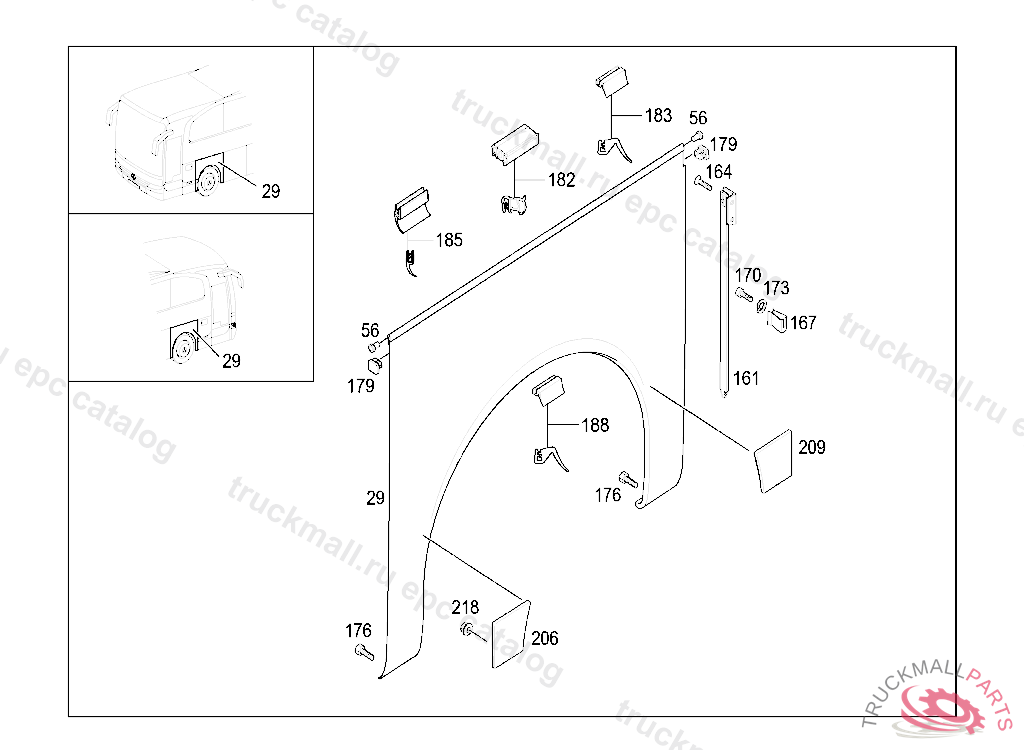

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 7

Поз.
Артикул
Описание
29
A6297503106
FLAP LEFT
29
A6297500606
FLAP
29
A6297503206
FLAP RIGHT
56
A0009926205
BUSHING
161
A6277500183
STAY
164
A0039908812
SCREWM6X12 TX30
167
A0009932125
SPRING
170
A0009905531
SCREWM 6 X 12
173
N000137006203
SPRING WASHER CABLE TO ALTERNATOR
176
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
176
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
179
A0009876245
LOCKING CAP
182
A0007570074
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
183
A6299870114
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
185
A0099874551
SEALING SECTION
188
A6299870114
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
206
A6299841075
FOIL
206
A6297570089
ORNAMENTAL COVER
209
A6297570189
ORNAMENTAL COVER
209
A6299841175
FOIL
218
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
