Поз.
Артикул
Описание
5

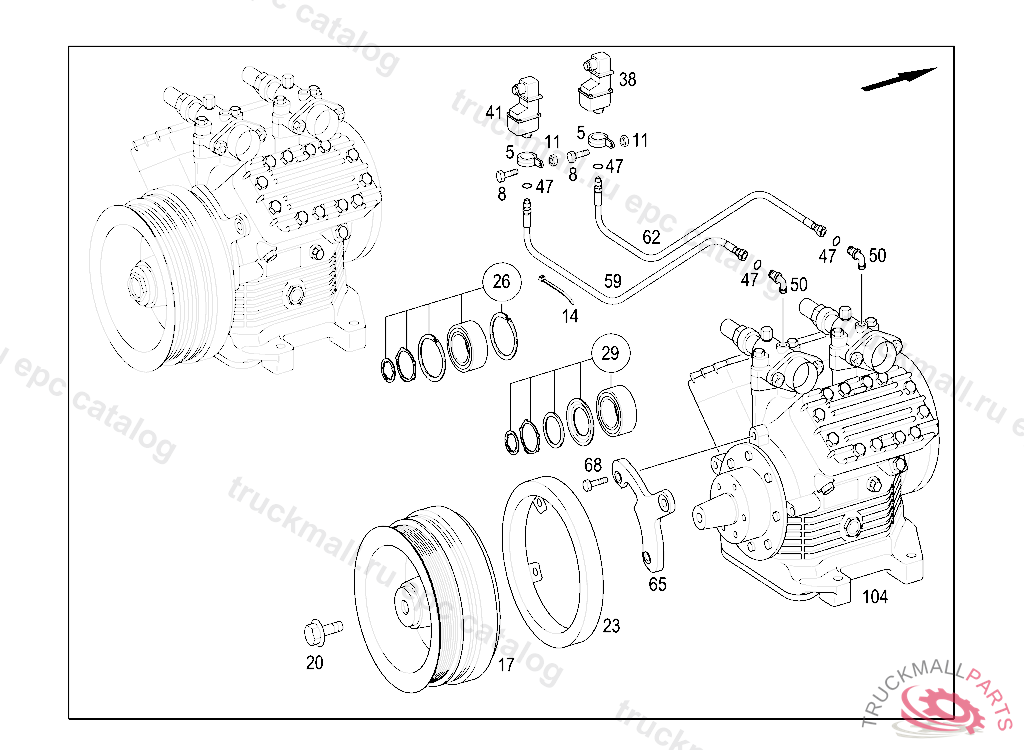

MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
5
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
5
CLAMP LINE MOUNTING
8
SCREW BRACKET AND CLAMP M6X20
11
NUT BRACKET TO FIRE WALL
14
LOOM TIE
17
COUPLING , Replaced By: A0008333326
17
COUPLING , Replaced By: A0008334526
17
COUPLING
17
COUPLING
20
SCREW MAGNETIC COUPLING FA LINNIG
23
MAGNETIC RING
26
BALL BEARING REPAIR KIT, WITHOUT SPACER BUSHING
29
GROOVED BALL BEARING REPAIR KIT TO A 001 830 49 72
38
PRESSURE MONITOR LOW PRESSURE 0,2/0,4BAR, Replaced By: A0008331050
38
SWITCH LOW PRESSURE 0,2/0,4BAR
41
PRESSURE MONITOR HIGH PRESSURE 18/22BAR, Replaced By: A0008331150
41
SWITCH HIGH PRESSURE 18/22BAR
47
SEAL7/16"
50
FITTING601-7313
50
CONNECTION
59
COOLANT LINE. PIPE LINE HIGH PRESSURE 540MM
62
COOLANT LINE
65
BRACKET
65
BRACKET
68
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
104
COMPRESSORFKX40/470K, TO BE ADAPTED DURING ASSEMBLY
104
COMPRESSOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298309460
104
COMPRESSOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298309460
104
COMPRESSOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298309460
999
SCREW BRACKET TO SIDE MEMBER M10X35
