Mercedes A6293220040 - Halter

O580 TRAVEGO 16RHD 629.015

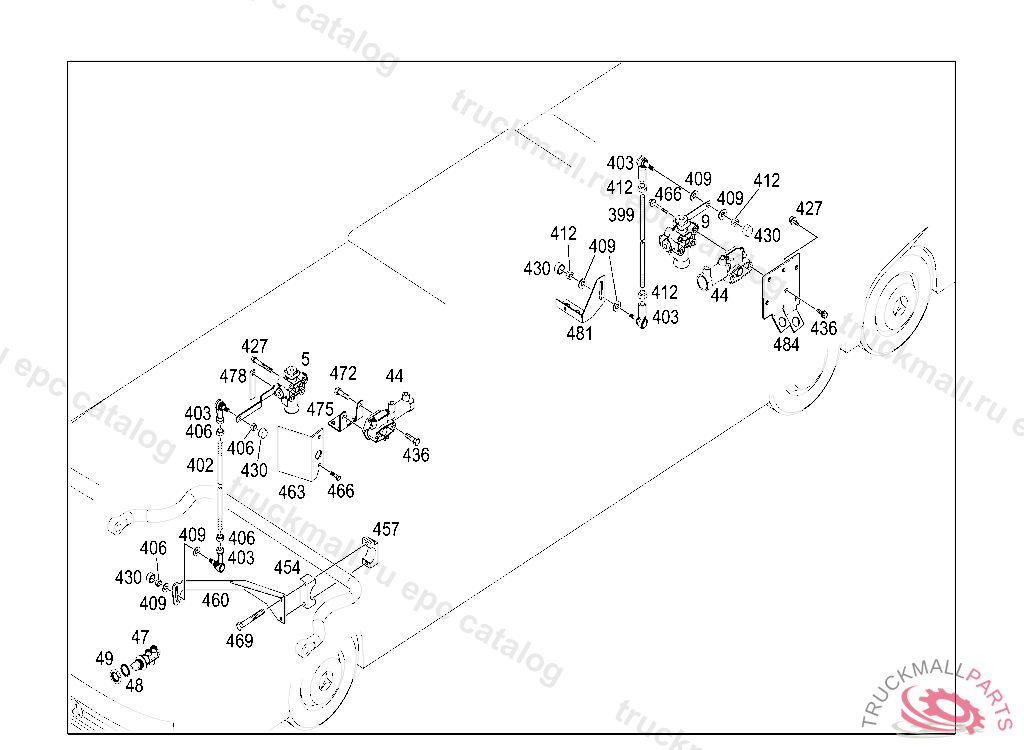

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 10

Поз.
Артикул
Описание
5
A0003279225
VALVE FRONT AXLE
5
A0003278825
VALVE FRONT AXLE
9
A0003285030
VALVE REAR AXLE
9
A0003282425
VALVE DRIVING AXLE LEFT
9
A0003282525
VALVE DRIVING AXLE RIGHT
44
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
47
A0003277725
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
48
A0059903940
WASHER
49
A0049906351
NUT VALVE TO BRACKET
399
A6293280534
RODM8/140LG
402
A6293280634
RODM8/160LG
403
A0019962545
ANGLE JOINTA13
403
A0003280063
JOINTA13, Replaced By: A0019962545
406
N304032008006
NUT
409
N000000003250
WASHER BRACKET TO CAB REAR PANEL
409
N000125008445
WASHER PUMP TO CONSOLE
412
N913023008003
NUT HORN TO BRACKET M8
412
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
427
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
427
N910105008006
SCREW VALVE TO BRACKET M 8X60
430
N913018013202
PROTECTION CAP MOUNTING TO BODY
436
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
454
A6293270021
COVER
457
A6293270121
COVER
460
A6293230015
LEVER
463
A6293270086
PROTECTIVE PLATE
466
N910105008041
SCREW , Replaced By: N910143008000
469
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
472
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
475
A6293220040
BRACKET APPROXIMATION SWITCH
478
A6293270127
LEVER APPROXIMATION SWITCH
481
A6293280640
BRACKET LEFT
481
A6293280740
BRACKET RIGHT
