Главная
›
Mercedes
›
BUS
›
O580 TRAVEGO 16RHD
›
629.015
›
61 SUBSTRUCTURE
›

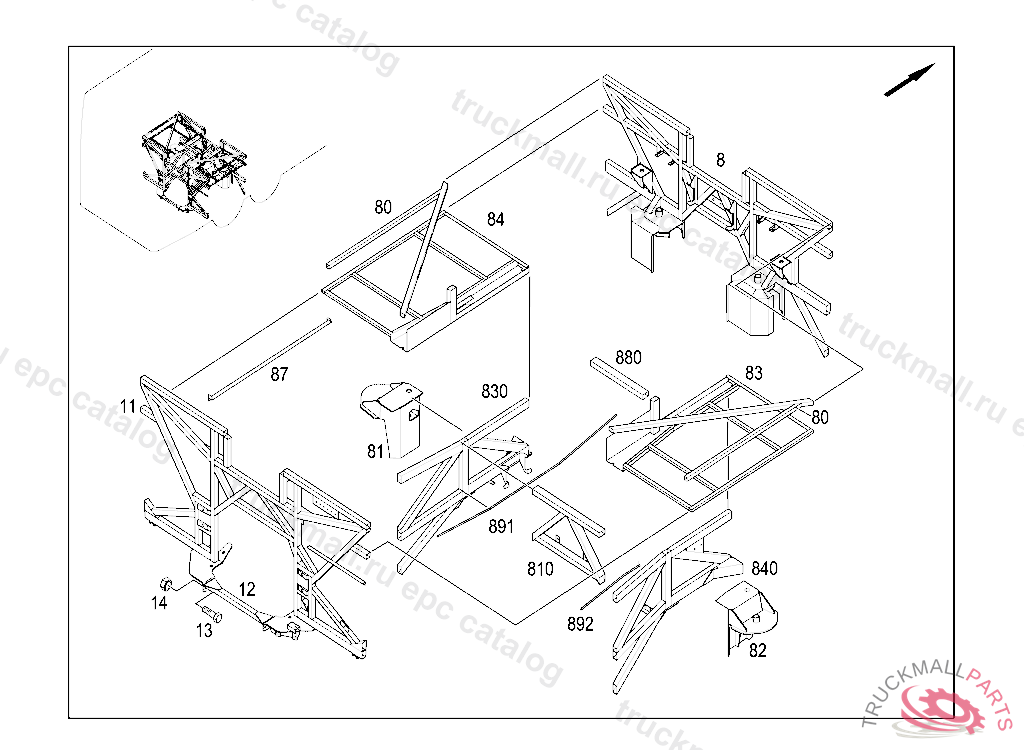

210 SUBSTRUCTURE FRAMEWORK,REAR IL. 3
Mercedes N912004010102 - КОЛЬЦО ПРУЖИННОЕ
O580 TRAVEGO 16RHD 629.015
61 SUBSTRUCTURE - 210 SUBSTRUCTURE FRAMEWORK,REAR IL. 3
Поз.
Артикул
Описание
8
A6296100414
CROSS MEMBER8
11
A6296101714
CROSS MEMBER TRAILING AXLE
12
A6296100520
CROSS MEMBER
13
N304017010021
SCREW , Replaced By: N304017010002
14
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
A6296102023
SUPPORT TOP
81
A6296103900
BRACKET LEFT
81
A6296100100
BRACKET LEFT
82
A6296104000
BRACKET RIGHT
82
A6296100200
BRACKET RIGHT
83
A6296106810
SIDE MEMBER RIGHT
83
A6296101923
FLOOR CARRIER RIGHT
84
A6296104123
FLOOR CARRIER LEFT
84
A6296106410
FLOOR CARRIER LEFT
87
A6326112082
ANGLE
810
A6296100573
FRAME TRAILING AXLE
830
A6296100510
SIDE MEMBER TRAILING AXLE
830
A6296106610
SIDE MEMBER TRAILING AXLE
840
A6296102010
SIDE MEMBER TRAILING AXLE
840
A6296106710
SIDE MEMBER TRAILING AXLE
880
A6296100232
CONNECTION
891
A6296117514
BRACKET RIGHT
891
A6296112014
BRACKET LEFT
892
A6296117514
BRACKET RIGHT
892
A6296112114
BRACKET RIGHT
