Главная
Mercedes
BUS
O580 TRAVEGO 16RHD
629.015
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
040 CONTACT PARTS,GROMMETS,MOUNTING PARTS, BULBS IL. 3

Mercedes A0005451745 - КОРПУС ШТЕК. ГНЕЗДА

O580 TRAVEGO 16RHD 629.015

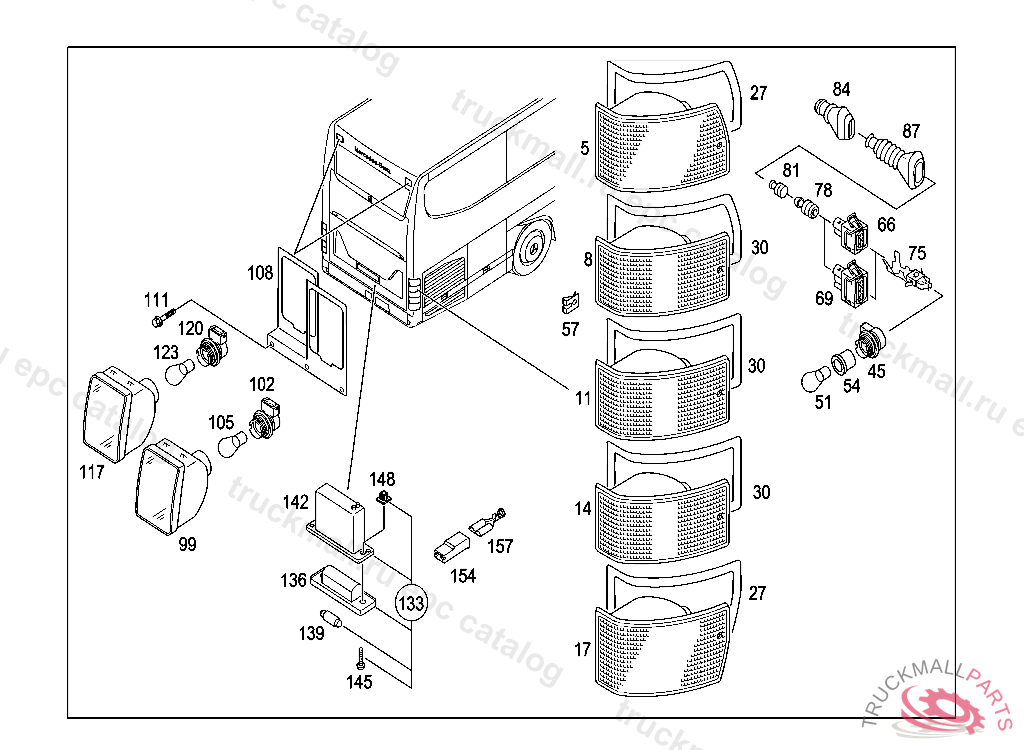

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 040 CONTACT PARTS,GROMMETS,MOUNTING PARTS, BULBS IL. 3

Поз.
Артикул
Описание
5
A0008203564
TAIL LAMP LEFT
5
A0008203664
TAIL LAMP RIGHT
8
A0015406970
TAIL LAMPBREMSLEUCHTE
11
A0008200420
BLINKER LAMP
14
A0028208056
EXTERIOR LAMP
17
A0028208256
EXTERIOR LAMP REAR FOGLAMP,LEFT
17
A0028208356
EXTERIOR LAMP FRONT FOG LAMP, RIGHT
27
A0008262691
SEAL RING LEFT
27
A0008262791
SEAL RING RIGHT
30
A0008262591
SEAL RING
45
A0008260462
SOCKET 3-POLE
45
A0008260162
SOCKET BLINKER LAMP
45
A0008260562
SOCKET REAR FOGLAMP
45
A0018261282
LAMP SOCKET REAR LEFT
51
N072601024190
BULB , Replaced By: N072601024192
51
N000000000065
YELLOW BULB TAILLAMPS 24V-21W
51
N072601024210
BULB24V - 21/5 W
54
A6288260073
SLEEVE
57
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
66
A0115450326
PIN BUSHING HOUSING BIPOLAR
69
A0155451226
SOCKET HOUSING 3-POLE
75
A0045455626
CONTACT SPRING , Replaced By: A0055456826
78
A0005452839
WIRE SEAL
81
A0005456280
GASKET. BLIND PLUG
84
A0005458583
CAP. BOOT ,126372
87
A0005466035
BOOT THREE-PIN PLUG CONNECTION
99
A0008203764
TAIL LAMP
102
A0008260462
SOCKET 3-POLE
105
N072601024210
BULB24V - 21/5 W
108
A6295440138
BRACKET LEFT
108
A6295440338
BRACKET RIGHT
111
N910105006002
HEXAGON HEAD BOLT
117
A0008260443
BLINKER LAMP TOP LEFT AND RIGHT
120
A0008260262
SOCKET BIPOLAR
123
N072601024190
BULB , Replaced By: N072601024192
133
A6328200056
EXTERIOR LAMP SCOPE OF SUPPLY FOR COMPLETE REPLACEMENT
136
A0028201756
LICENSE PLATE LAMP (LICENSE PLATE LAMP)
139
N072601024131
BULB24V/5W
142
A0008262991
SEAL (LICENSE PLATE LAMP)
145
A0019909520
SCREW
148
A0009889625
TREENAIL
154
A0005451745
BOOT PIN BUSHING
157
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
