Mercedes A0008306096 - ZB KAELTEMITTELSCHLA

O580 TRAVEGO 16RHD 629.015

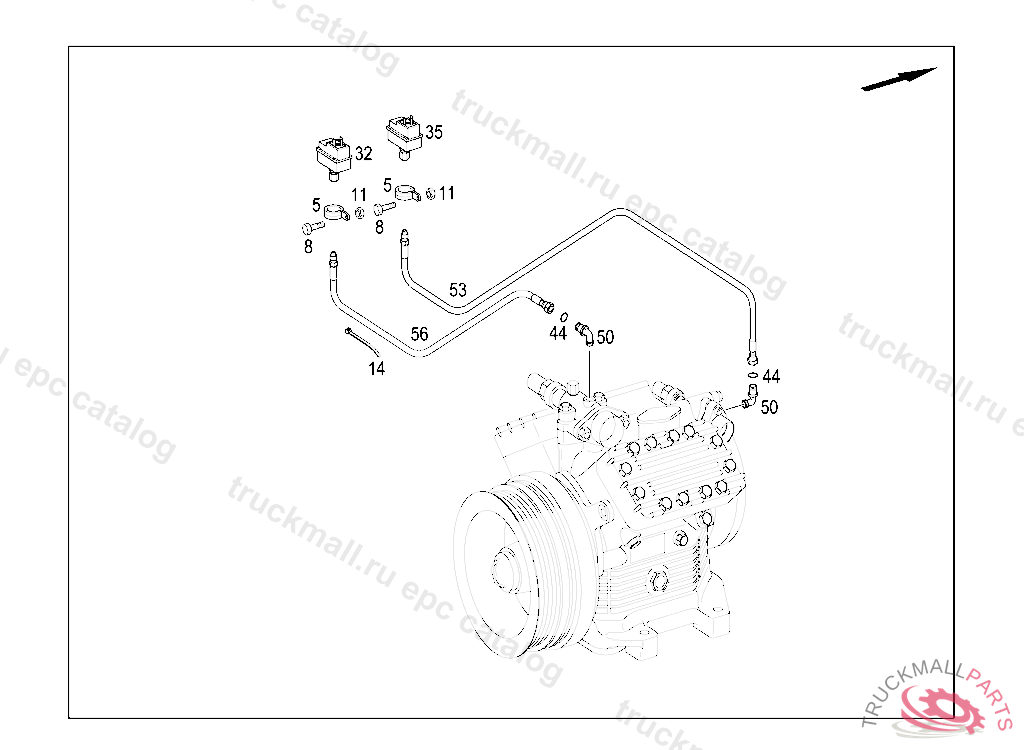

83 HEATING AND VENTILATION - 440 REFRIGERANT COMPRESSOR IL. 2

Поз.
Артикул
Описание
5
A0019950642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
5
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
5
N916016015202
CLAMP LINE MOUNTING
8
N910105006006
SCREW BRACKET AND CLAMP M6X20
11
N913023006002
NUT BRACKET TO FIRE WALL
14
A0079971790
LOOM TIE
32
A0108209210
PRESSURE MONITOR HIGH PRESSURE 18/22 BAR
32
A0128200110
PRESSURE MONITOR HIGH PRESSURE 20/25BAR
35
A0108209310
PRESSURE MONITOR LOW PRESSURE 0.2/0.4 BAR
44
A0149974445
SEAL RING
50
A6278320059
FITTING601-7313
50
A0008350432
CONNECTION
53
A0008306096
COOLANT LINE LOW PRESSURE 550MM
53
A6278320323
HOSE LOW PRESSURE 550MM, Replaced By: A0008306096
56
A6278320423
HOSE HIGH PRESSURE 370MM
999
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
