Mercedes A0008700481 - ZB DRUCKSCHALTER

O580 TRAVEGO 16RHD 629.015

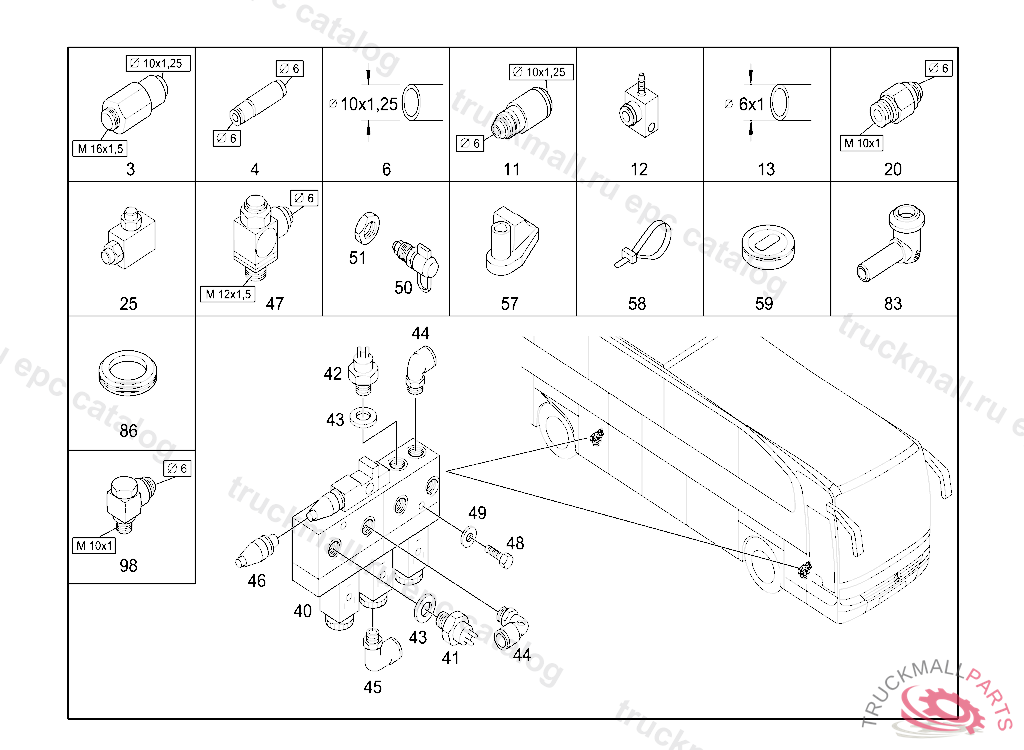

76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL IL. 1

Поз.
Артикул
Описание
3
A0059974036
VALVE
4
A0007605278
VALVED6 MM
6
A0009873927
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
A0009974475
THREADED UNION
12
A6459901278
CONNECTOR
13
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
20
A0039905768
FITTING
25
A0008050078
VALVE SHUTTLE VALVE
40
A0007607078
VALVE
40
A0007605778
VALVE
41
A0007632910
SWITCH , Replaced By: A0005452710
42
A0008700481
PRESSURE SWITCH
42
A0007634210
SWITCH3.5 BAR
43
A0007632054
SEAL
44
A0009973771
FITTING DIA., 6MM, M12X1,5
45
A0009973871
FITTING DIA., 6 MM, M5
46
A0007630864
DAMPER
47
A0039907068
FITTING
48
N910105005009
HEXAGON HEAD BOLT SHIFTING CYLINDER M5X55
49
N000000003337
WASHER
50
A0014312331
TEST CONNECTIONM16X1.5/M16X1.5
51
A0049906051
NUTM16X1.5 RAUFOSS
57
A0109883378
RETAINING CLIP
58
A0019978390
LOOM TIE LINE MOUNTING 280 MM
59
A0009876441
GROMMET
83
A0049904271
ELBOW FITTING
86
A0099978581
GROMMET
98
A0039906768
FITTING
