Mercedes A0019887335 - KAPPE LI EVO-GRAU 2

O580 TRAVEGO 16RHD 629.015

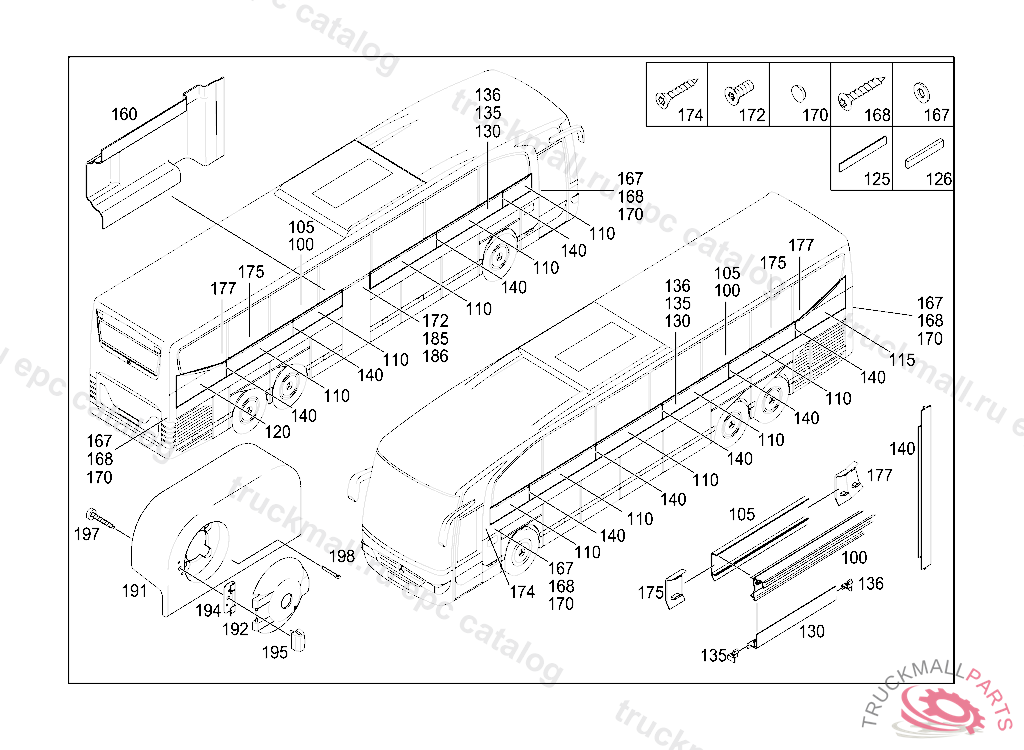

69 PANELLING AND LINING - 060 SIDE WALL INTERIOR PANELLING

Поз.
Артикул
Описание
100
A6296920501
PANELLING WINDOW SILL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
105
A6296920601
PANELLING WINDOW SILL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
110
A6296920500
PANELLING2200X450X4MM
115
A6296920600
PANELLING LEFT 1660X857X4MM
120
A6296920700
PANELLING RIGHT
125
A0009834898
FOAM PLASTICS35X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
126
A0009872266
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
130
A0079856451
METAL SECTION ALUMINUM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
135
A0019887435
CAP
136
A0019887335
CAP
140
A6296920161
LEDGE440X15MM
160
A6296920022
COVERING
167
N000000003738
WASHER4MM
168
A0019904836
SHEET METAL SCREW. SCREWST25X 6 T20
170
A0009877045
LOCKING CAP
172
A0029900120
SCREWM6X20
174
N000000000478
TAPPING SCREW3.5X19
175
A6296920033
CONNECTION
177
A6296920133
CONNECTION
185
N001367000004
SEAL WIRE
186
A0009882370
LEAD SEALD9MM
191
A6296920901
PANELLING
192
A3566910027
COVER
194
A3016910335
SPRING
195
A3016910021
MOUNTING
197
N000000000447
TAPPING SCREW BRACKET MOUNTING
198
N000094002064
COTTER PIN ROD TO INTERMEDIATE LEVER
