Mercedes A6296662032 - STREBE

O580 TRAVEGO 16RHD 629.015

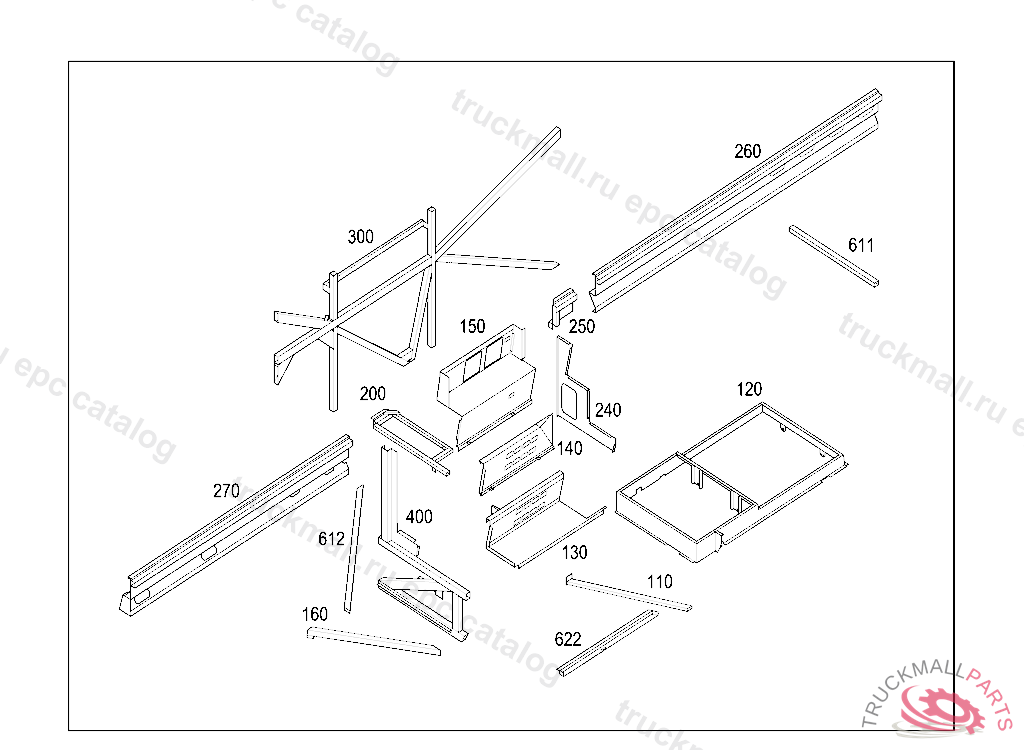

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 16

Поз.
Артикул
Описание
110
A6296600422
FRAME PART BOTTOM
120
A6296600378
FRAME PART
120
A6296608022
FRAME
130
A6296602829
ROCKER PANEL
130
A6296600528
STEP
130
A6296608428
STEP
140
A6296600628
STEP
140
A6296608528
STEP
140
A6296602929
ROCKER PANEL
150
A6296603029
ROCKER PANEL
150
A6296608628
STEP
150
A6296606128
ROCKER PANEL TOP
160
A6296600930
SUPPORT BOTTOM
200
A6296600522
FRAME PART REAR ENTRANCE
240
A6296600636
SIDE PANEL
250
A6296601023
FRAME PART TOP
250
A6296601243
SUPPORT
260
A6296100515
SIDE MEMBER
260
A6296100315
SIDE MEMBER
270
A6296101415
SIDE MEMBER REAR RIGHT 3247MM
300
A6296601330
SIDE MEMBER. SUPPORT
300
A6296600030
SIDE MEMBER. SUPPORT
300
A6296600130
SIDE MEMBER. SUPPORT
400
A6296600322
FRAME PART
400
A6296600330
SUPPORT
611
A6296662032
STRUT
612
A6296602730
SUPPORT
622
A6296661910
SUPPORT BOTTOM 941LG
622
A6296662010
SUPPORT BOTTOM 852LG
999
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
