Mercedes A6296880212 - HALTEWINKEL

O580 TRAVEGO 16RHD 629.015

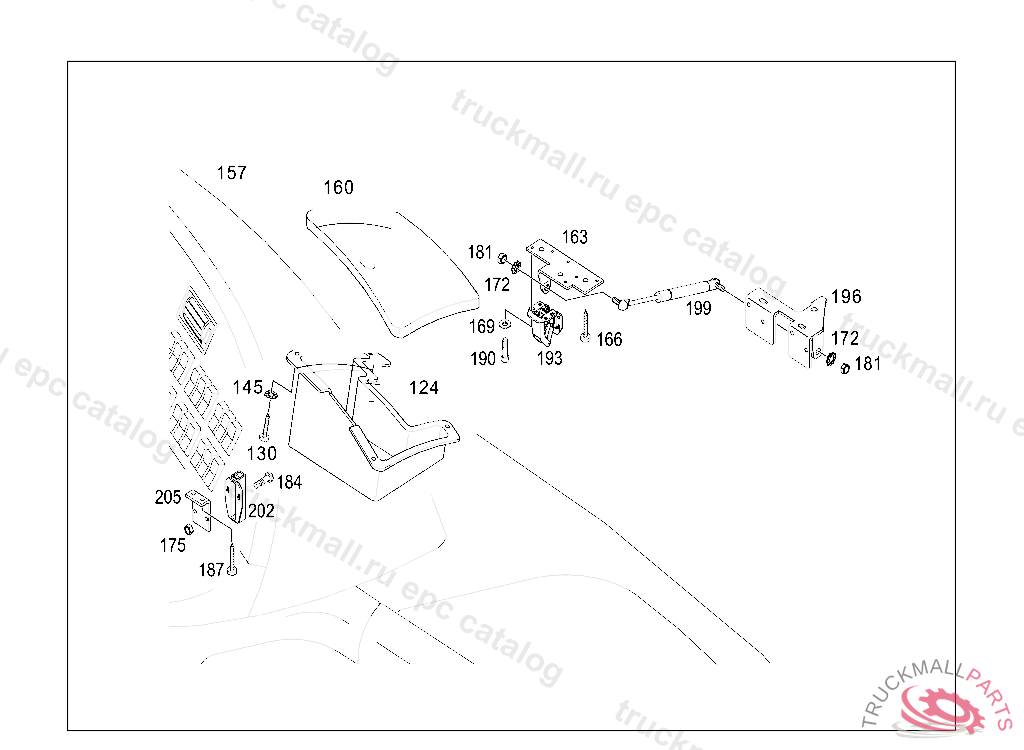

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 5

Поз.
Артикул
Описание
124
A6296800152
PIGEONHOLE
130
N000000000454
TAPPING SCREW SIDE REFLECTORS,K 057592
130
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
145
Q0206798004
WASHER5,3MM
157
A6296801706
PANELLING INSTRUMENT SUPPORT
160
A6296800717
FLAP
163
A6296880212
ANGLE FLAP
166
N007982003234
SHEET METAL SCREW BLACK 3,5X9,5MM
169
Q0100125001
WASHER3,2MM
172
Q0206798006
SERRATED WASHER8,2MM
175
Q0200934002
NUTM4
181
N000934008000
NUT LEVER TO SHIFTING SHAFT
184
Q0400966205
SCREWM4X8MM
187
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
190
N000084003408
SCREWM3X6MM
193
A6296800051
HINGE
196
A6296880312
ANGLE HINGE
199
A6299800164
GAS PRESSURE SPRING LIFTOMAT
202
A6299880063
SNAP LOCK
205
A6296810912
ANGLE
999
A0009870712
BASE RAIL EDGE GUARD SECTION, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0019907291
CLIP FASTENERM5
999
A0029885081
FASTENER BUTTON
999
A0059909340
WASHER
999
A3028120034
SPRING
999
A6296800414
BRACKET
999
A6296870214
BRACKET
999
A6296890085
PANELLING FRONT COVER
999
N910105005010
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
