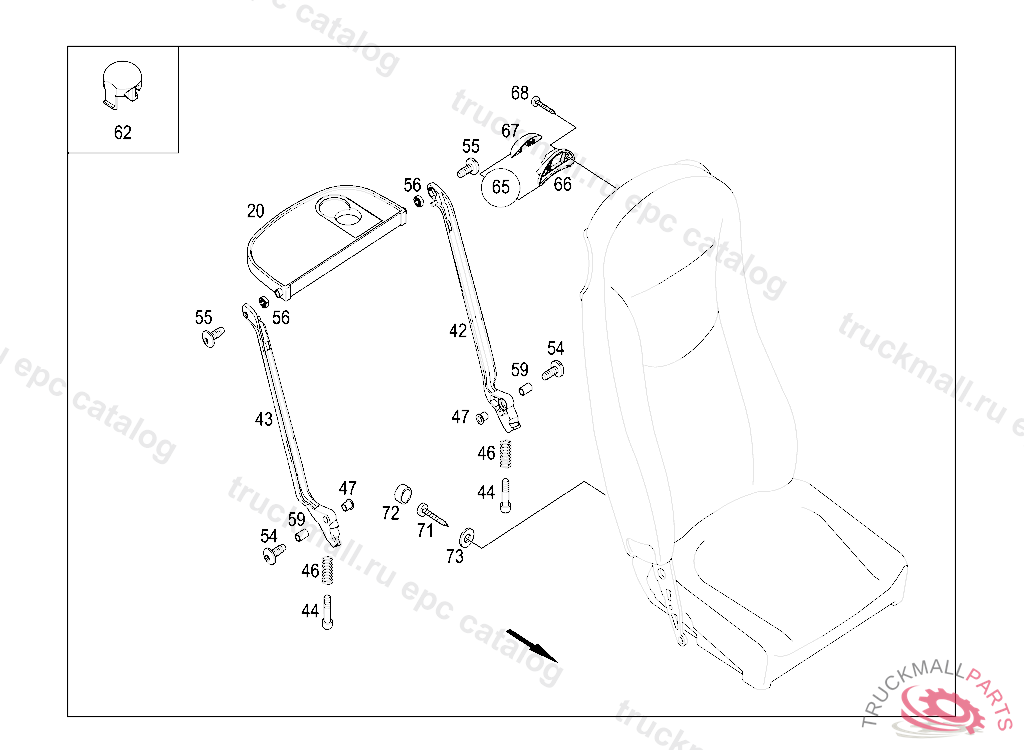

Mercedes A6298100066 - LU KLAPPTISCH MIT CU

O580 TRAVEGO 16RHD 629.015

81 APPOINTMENTS - 460 TABLE IL. 1

Поз.
Артикул
Описание
20
A6298104166
FOLDING TABLE WIDE(440 MM),WITH CUP HOLDER
20
A6298100066
FOLDING TABLE WITH CUPHOLDER, Replaced By: A6298104166
42
A6298100266
COUNTER FRAMEWORK LEFT
43
A6298100366
COUNTER FRAMEWORK RIGHT
44
N000912006173
SCREW CONNECTING ROD CAP TO CONNECTING ROD WABCO
46
A6299930201
SPRING
47
A6299920205
BUSHING
54
A0039902312
SCREW
55
A0009590171
SCREW ASHTRAY MOUNTING
56
A6299970171
ADAPTER
56
A6299970071
ADAPTER
56
A6299970271
ADAPTER
59
A6299920001
BUSHING
62
A6299970001
PLUG
65
A6298100363
BRACKET
65
A6298100913
BRACKET FOLDING TABLE
66
A6298100463
LATCH LOCKING MECHANISM
67
A6298140863
LATCH LOCKING MECHANISM
68
N000000003498
TAPPING SCREW4.2X19
71
A0019905136
SCREW, SPECIAL SHAPE3,5X13MM
72
A0009877145
LOCKING CAP
73
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
