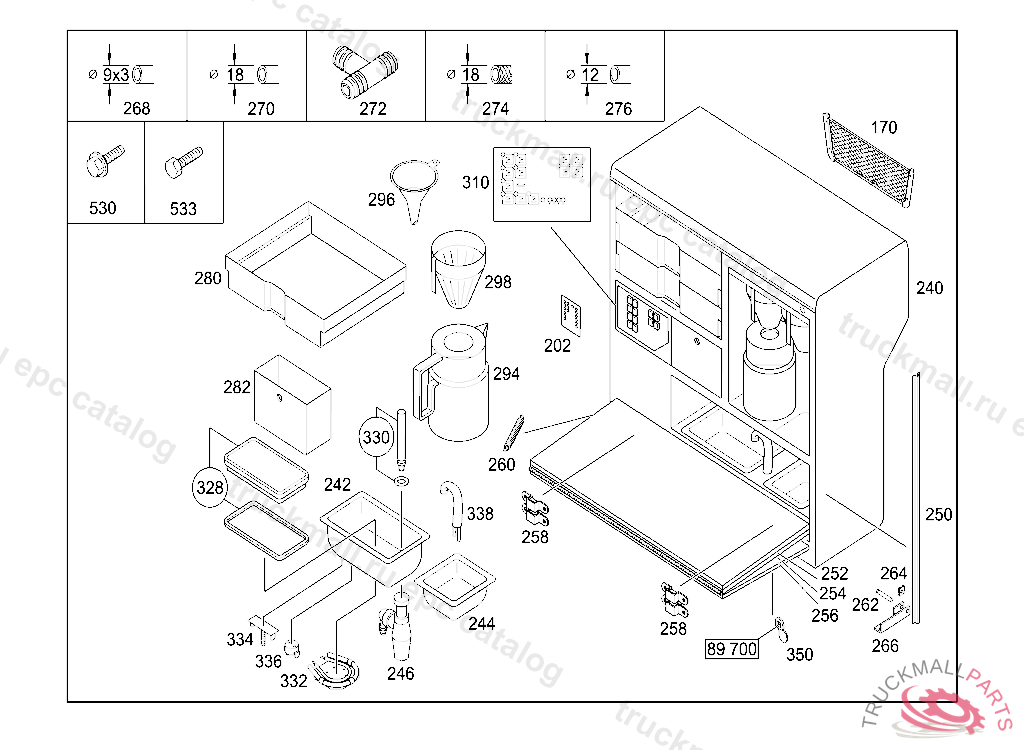

O580 TRAVEGO 16RHD
629.015
84 TRUNKS AND CASES
150 KITCHENETTE IL. 6

Mercedes N304017008021 - АВТОЗАПЧАСТЬ

O580 TRAVEGO 16RHD 629.015

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 6

Поз.
Артикул
Описание
170
A0008400220
ROOF RACK
170
A6329700092
LUGGAGE NET
202
A0038205426
CONTROL UNIT
202
A0038204626
CONTROL UNIT
240
A6298402660
KITCHENETTE
240
A6298400460
KITCHENETTE
242
A0008204006
ELEKTROKOCHER SAUSAGE COOKER 8,5 LTR
242
A6268400345
COOKER SAUSAGE COOKER 6,2L
244
A0008600463
WASH-BOWL
246
Q87531000000
SIPHON
250
A0008490127
RAIL
252
A0008430775
FLAP
252
A0008401507
FLAPZB KOMPLETT
254
A0008430875
FLAP
256
A0008430975
FLAP
258
A0008410051
HINGE
260
A0009930811
TENSION SPRING
262
A0009916501
PIN
264
A0009940221
LOCK
266
A0008400155
TAKE-UP DEVICE RIGHT
266
A0008400255
TAKE-UP DEVICE LEFT
268
A0018320323
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
270
A0008323094
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
272
A0009974384
DISTRIBUTOR RELAY VALVE,CONNECTION: "10"
274
A0008323194
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
276
A0008323294
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
280
A6268400504
DRAWER
282
A6268600260
RESERVOIR LITTER-BIN
294
A0008450523
THERMOS BOTTLE
296
A0005830649
FUNNEL
298
A6268660065
FILTER BOWL
310
A0008271457
OPERATING UNIT WITH DISPLAY
310
A6268200026
CONTROL UNIT
328
A0008451125
COVER WITH GASKET
328
A0008410039
COVER SAUSAGE COOKER
330
A0008430015
PLUG
330
A0008430115
PLUG SAUSAGE COOKER
332
A6268200098
HEATING ELEMENT24V/350W
334
A6268200410
SWITCH
336
A6268200310
SWITCH
338
A0008660662
WATER FAUCET
338
A6268600262
WATER FAUCET
350
A6297180085
LATCH PLATE
530
N910105008014
SCREW CLAMP ON BRACKET
533
N304017008021
SCREW PIPE CLAMP
999
N000125006434
WASHER
999
A6298405660
KITCHENETTE
999
A6298404160
KITCHENETTE
999
A6298130258
HOUSING
999
A6298130158
COVER
999
A6298130028
CLIP
999
A0148204404
ELECTRIC CABLE
999
A0118200110
SWITCH
999
A0059976489
COUPLING
999
A0038201326
CONTROL UNIT
999
A0035454605
CONTROL UNIT CENTRAL LUBRICATION
999
A0035404605
CABLE HARNESS
999
A0029971468
CONNECTOR
999
A0025459334
FUSE
999
A0018204701
INTERIOR LAMP
999
A0009977271
FITTING
999
A0009970404
THROTTLE
999
A0009942403
WASHER
999
A0009918070
CLIP
999
A0009915570
CLIP
999
A0008453323
CONTAINER WATER RESERVOIR
999
A0008452223
CONTAINER
999
A0008451214
BRACKET LEFT
999
A0008450058
VALVE
999
A0008430820
RAIL
999
A0008430714
CUP DISPENSER
999
A0008430614
CUP HOLDER
999
A0008430330
COVERING
999
A0008400055
TAKE-UP DEVICE
999
A0008360252
HINGE
999
A0008321259
FITTING ELBOW FITTING
999
A0008231711
PLATE
999
A0008213763
FILL LEVEL SENSOR
999
A0008207898
HEATING ELEMENT
999
A0008203906
BOILERVST
999
A0008203206
CONTINUOUS-FLOW HEATER
999
A0008203106
CONTINUOUS-FLOW HEATER
999
A0008202606
BOILER
999
A0008201637
CLUTCH
999
A0008200869
CABLE HARNESS
999
A0008130437
COVERING ASHTRAY
999
A0008130202
ASHTRAY
