Mercedes A6294901510 - ZB AUSPUFFROHR VST

S 411 HD 629.410

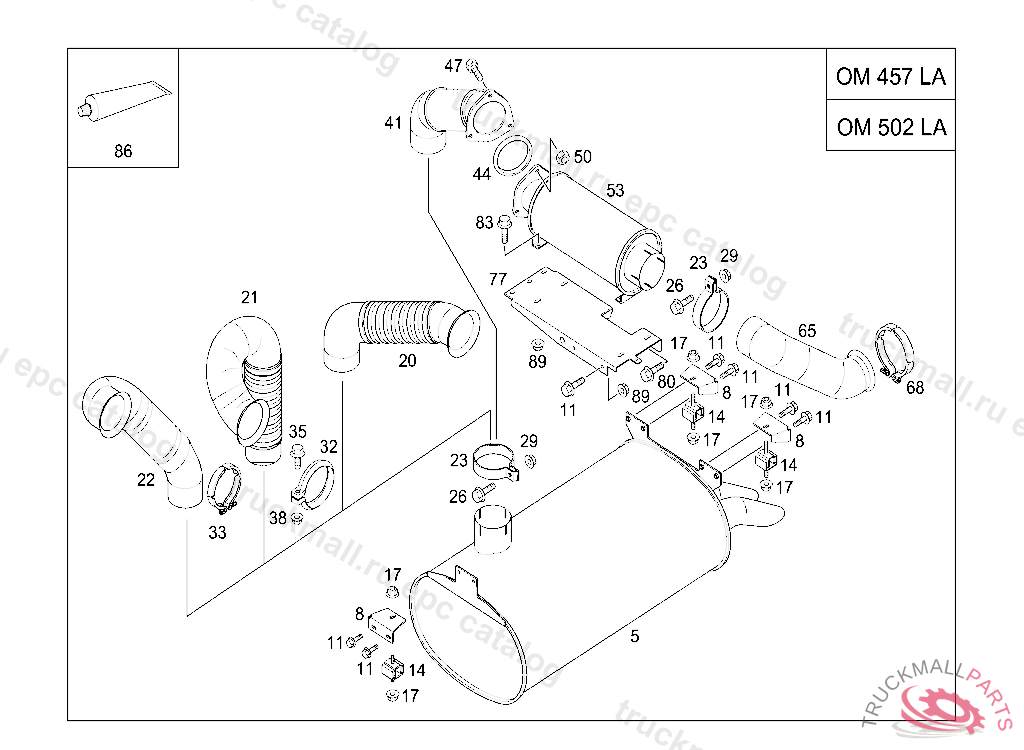

49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6294910700
MUFFLER
8
A6294910041
BRACKET
11
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
14
A0004910285
RUBBER MOUNTING
17
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
20
A6294901510
EXHAUST PIPE
23
A6294910040
CLAMP
26
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
29
N910113012002
NUT SUPPORT TO SIDE MEMBER
32
A0009956302
CLAMPD162
32
A9429970090
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING, Replaced By: A9429950033
32
A0009958602
CLAMPD148
35
N910105008060
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
38
N913023008003
NUT HORN TO BRACKET M8
