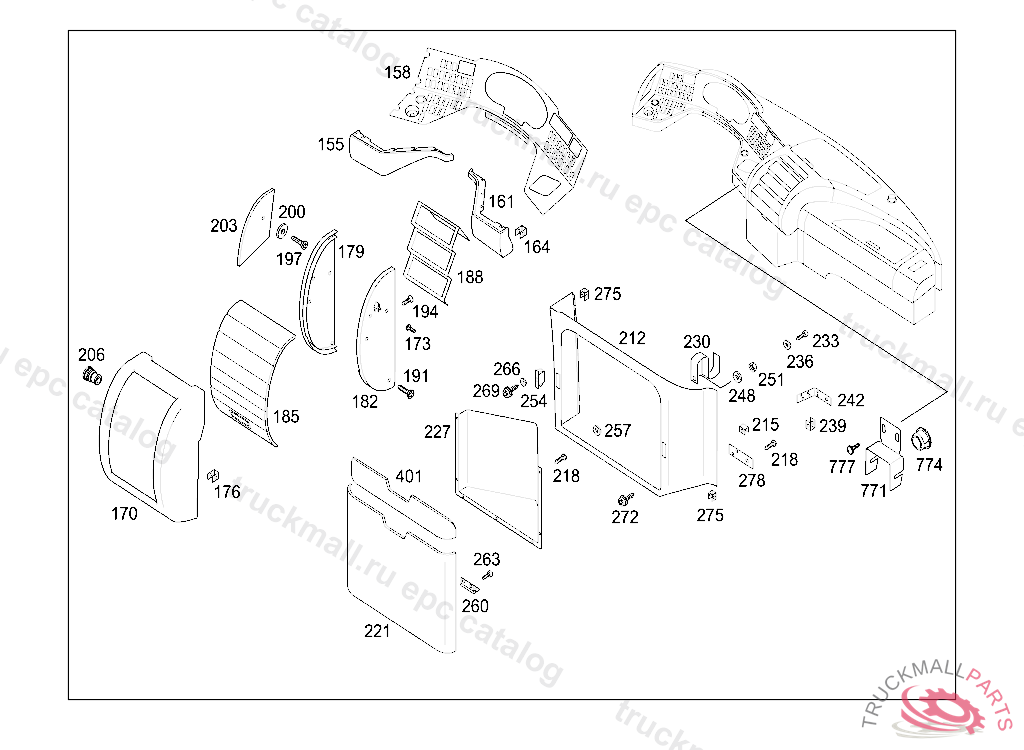

Поз.
Артикул
Описание
155
PANELLING
158
INSTRUMENT SUPPORT
161
CONSOLE
164
NUT FOR TAPPING SCREW
170
CONSOLE
173
SHEET METAL SCREW RELAY TO APPARATUS SUPPORT,K 182153K 239549
176
NUT FOR TAPPING SCREW
179
GUIDE
182
GUIDE
185
COVERING
185
SCREENING , Replaced By: A6296830108
188
SUPPORT
191
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
191
SHEET METAL SCREW BRACKET TO FLOOR PLATE
194
TAPPING SCREW3.5X22
194
SHEET METAL SCREW BLIND PLUG SOCKET
197
BOLT UPPER RIGHT PANELING HOUSING 6X12
200
WASHER , Replaced By: N009021006208
200
WASHER COVERING TO CYCLONE AIR TRAP
203
COVERING
206
THREADED CHUCKM 6
212
PANELLING
212
CONSOLE
215
NUT
218
TAPPING SCREW BRACKET MOUNTING
221
HINGED DOOR
221
ORNAMENTAL COVER
227
HOUSING
230
REBOUND STRAP
233
SCREWM4X10 T20
236
WASHER COVERING TO CYCLONE AIR TRAP
236
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
239
NUT
242
MOUNTING PLATE
248
WASHER FUEL LINES TO BRACKET
251
NUT CLAMP TO BRACKET
254
FASTENER
257
WASHER BRACKET TO SUPPORT
260
HINGE
263
SCREWM4X10
266
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
266
WASHER5,3
269
TAPPING SCREW RAIL
272
TAPPING SCREW MOUNTING PLATE 3.5X9.5
275
NUT
278
NUT
401
LEDGE
401
LEDGE
401
LEDGE
771
BRACKET PANORAMIC CAMERA
774
FEED-THROUGH GROMMET
777
TAPPING SCREW MOUNTING PLATE 3.5X9.5
999
HOUSING
999
ANGLE
999
MOUNTING
999
PANELLING RIGHT
999
WASHER
999
COVERING
999
COVERING
