Mercedes N910001004105 - Клипса

S 411 HD 629.410

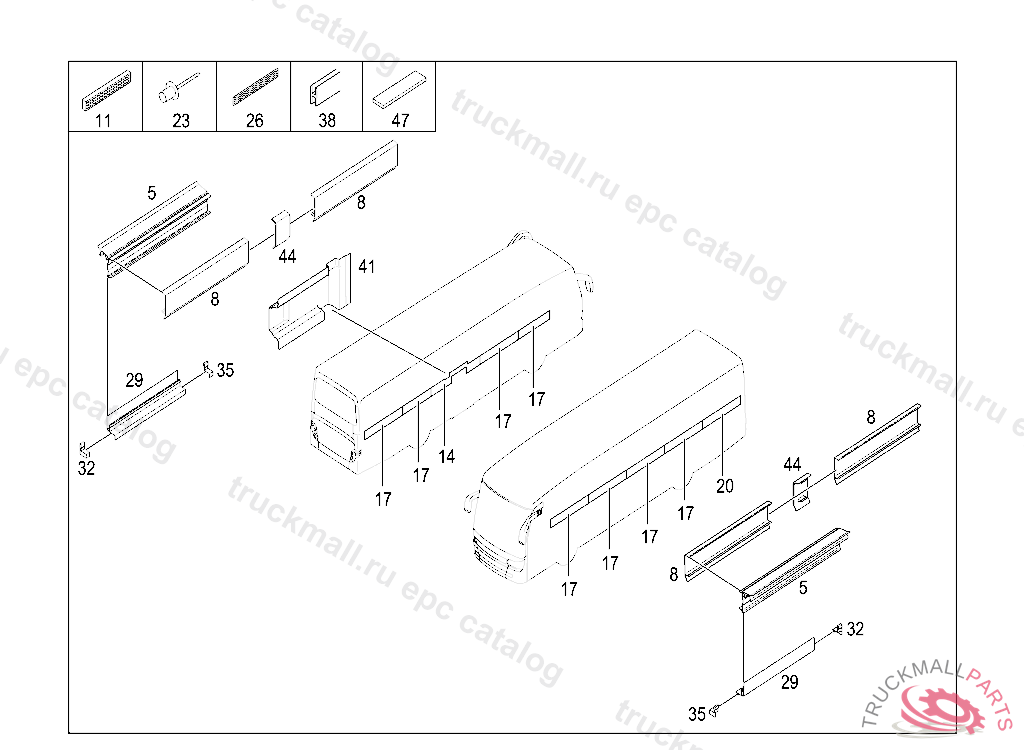

69 COVERING AND LINING - 060 SIDE WALL INTERIOR PANELLING

Поз.
Артикул
Описание
5
A6296920501
PANELLING WINDOW SILL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
A6296920601
PANELLING WINDOW SILL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
A0009872266
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
A6296922200
PANELLING
17
A6296922100
PANELLING
20
A6296924400
PANELLING
23
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
26
A0009834898
FOAM PLASTICS35X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
29
A0079856451
METAL SECTION ALUMINUM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
32
A0006910433
CAP
35
A0006910333
CAP
38
A6296920261
LEDGE
41
A6296920022
COVERING
44
A6296920033
CONNECTION
47
A0009878914
RUBBER STRIP20 X 3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
