Mercedes A6296101806 - ZB TRAEGER / A PODES

S 411 HD 629.410

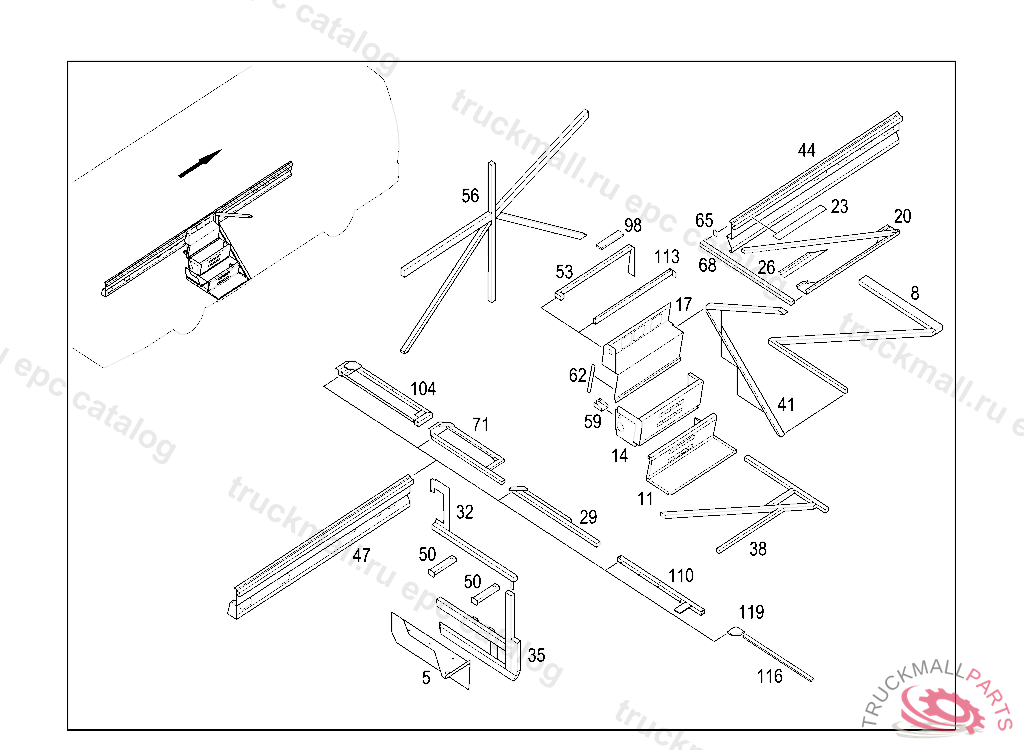

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 1

Поз.
Артикул
Описание
5
A6296601255
COVERING
8
A6296602930
SUPPORT
11
A6296608428
STEP
11
A6296600128
ROCKER PANEL BOTTOM 935LG
11
A6296601429
ROCKER PANEL
14
A6296601329
ROCKER PANEL
14
A6296609228
ROCKER PANEL
14
A6296606228
ROCKER PANEL
17
A6296603529
ROCKER PANEL
17
A6296601229
ROCKER PANEL
17
A6296602629
ROCKER PANEL
17
A6296604229
ROCKER PANEL
17
A6296609628
ROCKER PANEL TOP 937LG
17
A6296604029
ROCKER PANEL
20
A6296106813
SIDE MEMBER
23
A6276133311
PLATE
26
A6296661635
RAIL
29
A6296602422
FRAME PART963LG
29
A6296600368
PEDESTAL
32
A6296607422
FRAME
32
A6296604230
SUPPORT
35
A6296606122
FRAME
38
A6296607122
FRAME
41
A6296607522
FRAME
44
A6296103915
SIDE MEMBER
44
A6296105715
SIDE MEMBER
47
A6296103815
SIDE MEMBER
47
A6296105815
SIDE MEMBER
50
A6296600512
ANGLE
53
A6296100006
ENTRANCE SUPPORT
53
A6296100106
ENTRANCE SUPPORT
56
A6296106209
SUPPORT
59
A6296661531
CONSOLE
62
A6296106209
SUPPORT
62
A6296114755
PLATE
65
A6276114455
PLATE
68
A6296661085
TUBE895LG
68
A6326600626
FRAME
71
A6296607722
FRAME
71
A6296607622
FRAME ,WKK 629410 13 000319
71
A6296600768
PEDESTAL ,WKK 629410 13 000320
71
A6296600168
PEDESTAL
98
A0029870033
RUBBER SECTIONMAVATOR SK 2 X 1 / L1000 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
A6296101706
ENTRANCE SUPPORT
104
A6296101806
ENTRANCE SUPPORT
110
A6326600526
FRAME
113
A6296100806
ENTRANCE SUPPORT
116
A6296114556
COVER PLATE
119
A6296114156
PLATE
