Главная
›
Mercedes
›
BUS
›
S 411 HD
›
629.410
›

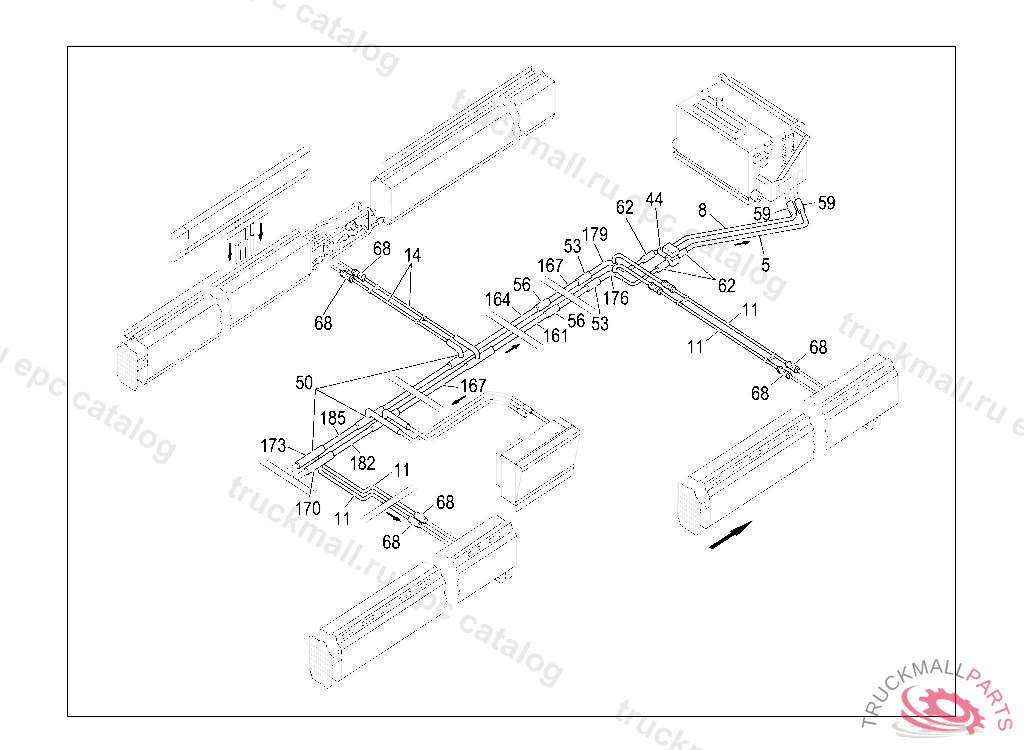

83 HEATING AND VENTILATION
›
420 HEATING WATER LINE IL. 32
Mercedes A6298300615 - ZB HEIZROHR RL
S 411 HD 629.410
83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 32
Поз.
Артикул
Описание
5
A6298326721
PIPE LINE
8
A6298307215
PIPE LINE
11
A6298327321
PIPE LINE
14
A6298323015
HEATING PIPE1000MM
44
A0048301684
VALVE THREE-WAY VALVE
44
A0038305784
VALVE THREE-WAY VALVE, Replaced By: A0048301684
44
A0008322172
VALVE , Replaced By: A0038305784
50
A6298320056
DISTRIBUTORD38/15/38-248MM
53
N000000004992
HOSE ,D 209702
53
N900271038019
HOSE LINE CONNECTION 38X50X100 MM
56
N000000001107
HOSE38X50X130MM, Replaced By: N000000004993
56
N000000004993
HOSE38X50X130MM
59
N000000004976
HOSE22X31X100MM
59
N900271022000
HOSE
62
N900271022024
HOSE22 X 31 X 80 MM, TO BE ADAPTED DURING ASSEMBLY
62
N000000004975
HOSE22X31X80MM
68
N000000004960
HOSE15X24X100
68
A0249974082
RADIATOR HOSE. HOSED14,5X23,5X100MM, Replaced By: N000000004960
161
A6298326921
PIPE LINE RETURN D38X2300MM
164
A6298327021
PIPE LINE
167
A6298325715
HEATING PIPE800MM
170
A6298327115
HEATING PIPED38/1120MM
173
A6298326215
HEATING PIPE1180LG
176
A6298300515
PIPE LINE
179
A6298301616
PIPE LINE RETURN
179
A6298300615
PIPE LINE
182
A6298328415
HEATING PIPED38/430MM
185
A6278322615
PIPE LINE
999
A0068207842
SERVO-D.C. W.GEARBOX
