Mercedes A0009192361 - BETAETIGUNGSHEBEL

S 415 HD 629.411

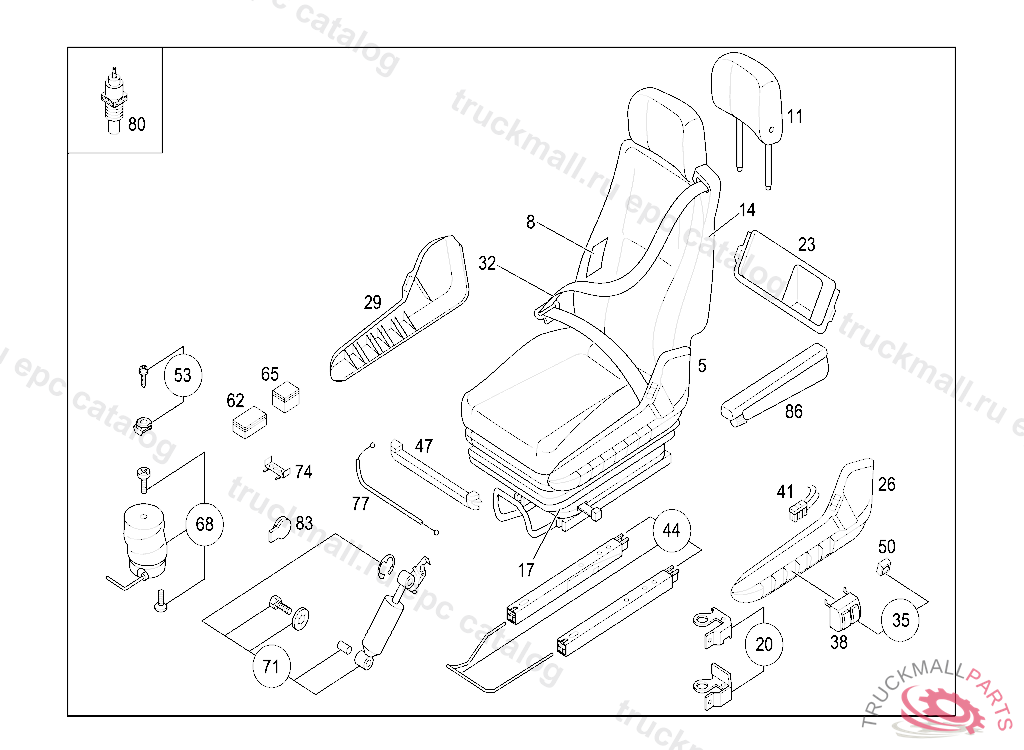

91 FRONT SEATS - 020 ISRINGHAUSEN DRIVER'S SEAT IL. 1

Поз.
Артикул
Описание
5
A6299102601
FRONT SEAT LEFT OPERATION, THREE-POINT BELT, ROTATABLE, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
8
A0009100575
SEAT ADAPTER ADJUSTABLE
11
A0009702750
HEADREST , Replaced By: A6289700050
14
A0009103318
COVERING
17
A0009100557
CONSOLE SWIVEL TYPE
20
A0009190878
CLAMP
23
A0009120223
PANELLING
26
A0009120423
PANELLING LEFT
29
A0009120623
PANELLING RIGHT
32
A0038603785
SAFETY BELT
35
A0009103571
LEVER
38
A0068205510
SWITCH
41
A0008003578
VALVE LEFT
44
A0009100889
GUIDE RAIL
47
A0009120823
PANELLING
50
A0009100380
BACKREST ADJUSTER LEFT
53
A0009120014
BRACKET SEAT CUSHION DEPTH ADJUSTMENT
62
A0004460011
PIV ELECTRONICS
65
A0008003778
VALVE
68
A0008000036
SPRING
71
A0009198545
SHOCK ABSORBER
74
A0008003178
VALVE COMPRESSED AIR CONNECTION
77
A0009101174
PULL BOWDEN CABLE
80
A0008000008
FILTER
83
A0018213360
RESISTOR , AS OF SERIAL NUMBER 639500057732
83
A0068206710
SWITCH ,221148 UP TO SERIAL NUMBER 639500057731
86
A3569704101
ARMREST LEFT
86
A3569704201
ARMREST RIGHT
999
A0009130864
LEVER REPAIR KIT
999
A0009192361
LEVER
