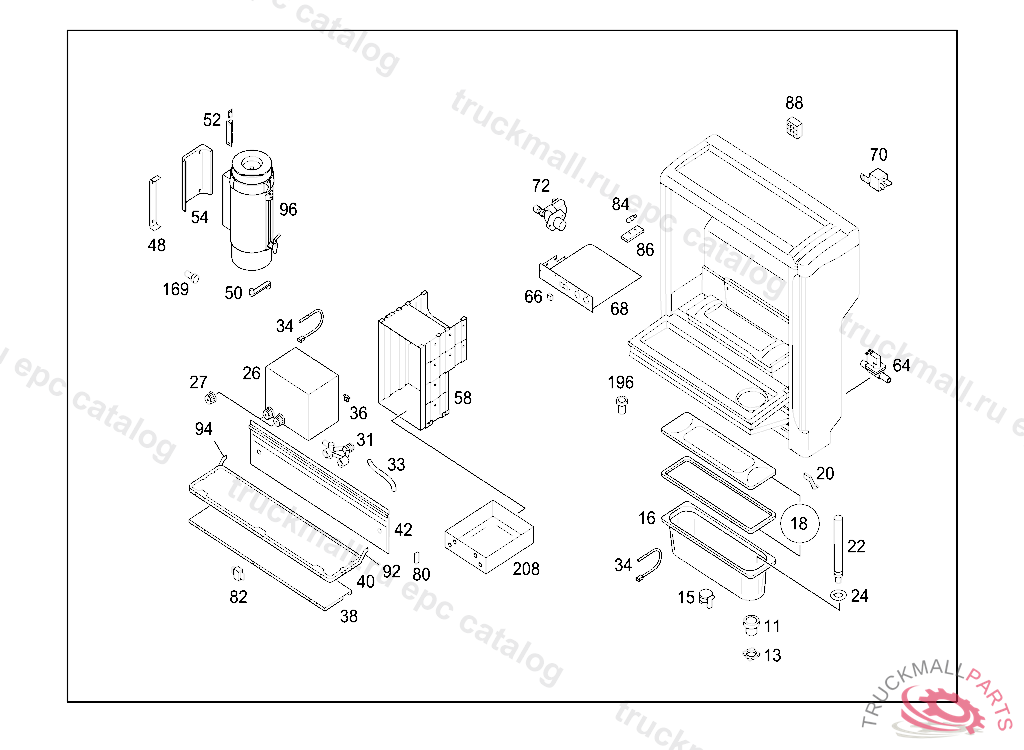

Поз.
Артикул
Описание
11
PIPE SOCKET WATER DRAIN
13
SEAL
15
SWITCH
16
ELEKTROKOCHER SAUSAGE COOKER VST
16
COOKER SAUSAGE COOKER WK 24 - 500 3/4" - 10L
16
HOT PLATE SAUSAGE COOKER BEHAELTER MIT HEIZUNG
16
ELEKTROKOCHER SAUSAGE COOKER VST
16
ELECTRIC COOKER SAUSAGE COOKER, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 13.10.2006 UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.04.2008
16
COOKER SAUSAGE COOKER, FROM IDENT NO. WEB 102745 ALSO INSTALLED ON WEB 102753 , WEB 102787 , WEB 102804
16
COOKER SAUSAGE COOKER, UP TO IDENT NO. WEB 102744 EXCEPT FOR WEB 102753 , WEB 102787 , WEB 102804
18
COVER SAUSAGE COOKER
18
COVERING WITH GASKET, Replaced By: A0008400036
18
COVER FOR COOKER WITH GASKET
20
BRACKET FOR SAUSAGE COOKER COVER
22
TUBE1/2",150MM
24
SEAL RING12,37X2,62MM
26
COOKER WITH INSPECTION GLASS
26
COOKER WATER HEATER
26
COOKER WATER HEATER
26
COOKER WATER HEATER
27
KNOB BLUE
27
KNOB RED
31
MIXING FAUCET
31
MIXING FAUCET
33
WATER FAUCET
33
DISCHARGE
33
SWIVEL ARM GREY 130MM
33
WATER FAUCET , Replaced By: A0008604062
33
WATER FAUCET
34
TEMPERATURE SENSOR CENTRAL
36
SWITCH
38
FLAP CENTRAL
40
FLAP BOTTOM
42
FLAP
48
BRACKET
50
DRAINAGE PIPE
52
SNAP LOCK
54
BRACKET
58
HOUSINGSCHRANK-GEHAEUSE GROSS
58
DRAWER COMPARTMENTSCHRANK GEHAEUSE KLEIN
64
ROTARY KNOB , Replaced By: A0108205310
64
SWITCH
66
PRESSURE SWITCH
68
REGULATOR UNIT
68
SWITCH
68
SWITCH
70
RELAY
70
RELAY
70
RELAY40A
70
RELAY50A
72
SOLENOID VALVE PLASTIC 24 VDC
80
MAGNET
82
HINGE
84
BULB24V/5W
84
LIGHT EMITTING DIODE
86
INTERIOR LAMP
86
SOCKET
88
BLOWER
92
STOP PLATE RIGHT
94
STOP PLATE LEFT
96
COFFEE MACHINEMOD.97(40T)
96
COFFEE MACHINE40T
169
PLUG
196
PIPE SOCKET
208
DRAWER MAJOR
208
DRAWER COMPARTMENT MAJOR
208
DRAWER MINOR
208
DRAWER MAJOR, Replaced By: A0008401902
999
WASHER
999
KITCHENETTE
999
KITCHENETTE
999
HOUSING
999
COVER
999
CLIP
999
ELECTRIC CABLE
999
SWITCH
999
COUPLING
999
CONTROL UNIT
999
CONTROL UNIT CENTRAL LUBRICATION
999
CABLE HARNESS
999
CONNECTOR
999
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
INTERIOR LAMP
999
FITTING
999
THROTTLE
999
WASHER
999
CLIP
999
CLIP
999
CONTAINER WATER RESERVOIR
999
CONTAINER
999
BRACKET LEFT
999
VALVE
999
RAIL
999
CUP DISPENSER
999
CUP HOLDER
999
COVERING
999
TAKE-UP DEVICE
999
HINGE
999
FITTING ELBOW FITTING
999
PLATE
999
FILL LEVEL SENSOR
999
HEATING ELEMENT
999
BOILER
999
BOILERVST
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILER
999
CLUTCH
999
CABLE HARNESS
999
COVERING ASHTRAY
999
ASHTRAY
