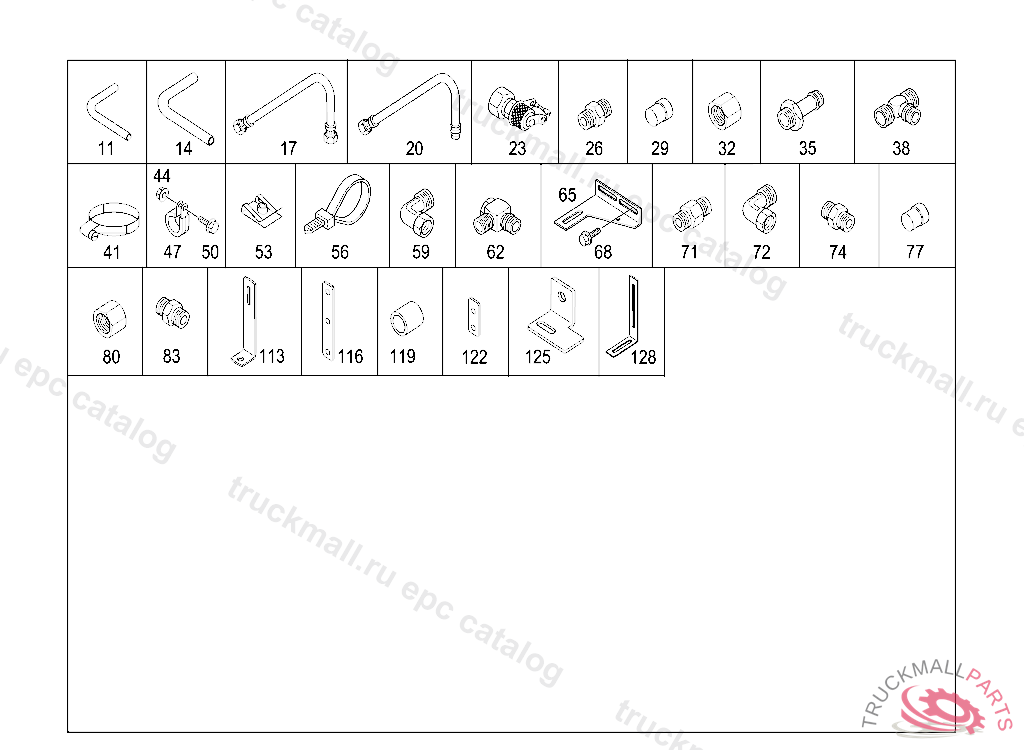

Поз.
Артикул
Описание
11
HOSE 90-DEGREE ARC NW15
14
HOSE
14
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
17
LINE
17
LINE. HOSE
20
LINE
23
TEST CONNECTION
26
FITTING
26
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
29
GLAND (DELIVERY AND SUCTION LINE) BL15
32
NUT LINE CONNECTIONS AL 15
32
UNION NUT LINE CONNECTION
35
CONNECTOR (THROTTLE VALVE)
38
FITTING
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
NUT HORN TO BRACKET M8
44
NUT UPPER TRANSVERSE CONTROL ARM TO STEERING KNUCKLE
44
NUT BRACKET TO FIRE WALL
47
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
47
MOUNTING CLAMP22/15
47
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
47
CLAMP LINE MOUNTING
47
CLAMP PIPE ON FAN SHROUD
47
CLAMP DELIVERY AND SUCTION LINES TO FRAME
47
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
47
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
47
CLAMP22/15, Replaced By: A0019951442
50
SCREW BRACKET TO CAB REAR PANEL M 8X20
50
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
50
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
50
SCREW , Replaced By: A0029908512
53
LOCK. NUT , Replaced By: A0039941745
53
LOCK
53
NUT
56
CABLE STRAP7.8X465
59
FITTING OIL LINE CONNECTION
62
FITTING
65
BRACKET
68
SCREW , Replaced By: N910143008000
71
FITTING AT STEERING GEAR
71
SCREW-IN FITTING , Replaced By: N003901015005
72
FITTINGL22
72
FITTING SUCTION LINE TO OIL PUMP
74
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
74
FITTING POWER STEERING PUMP
77
GLANDBL22
80
UNION NUTAL22
83
CONNECTOR
113
BRACKET
116
BRACKET
119
SPACER SLEEVE
128
BRACKET50X81MM
128
BRACKET80X153 MM
128
BRACKET
