Главная
›
Mercedes
›
BUS
›
S 415 HD
›
629.411
›
61 SUBSTRUCTURE
›

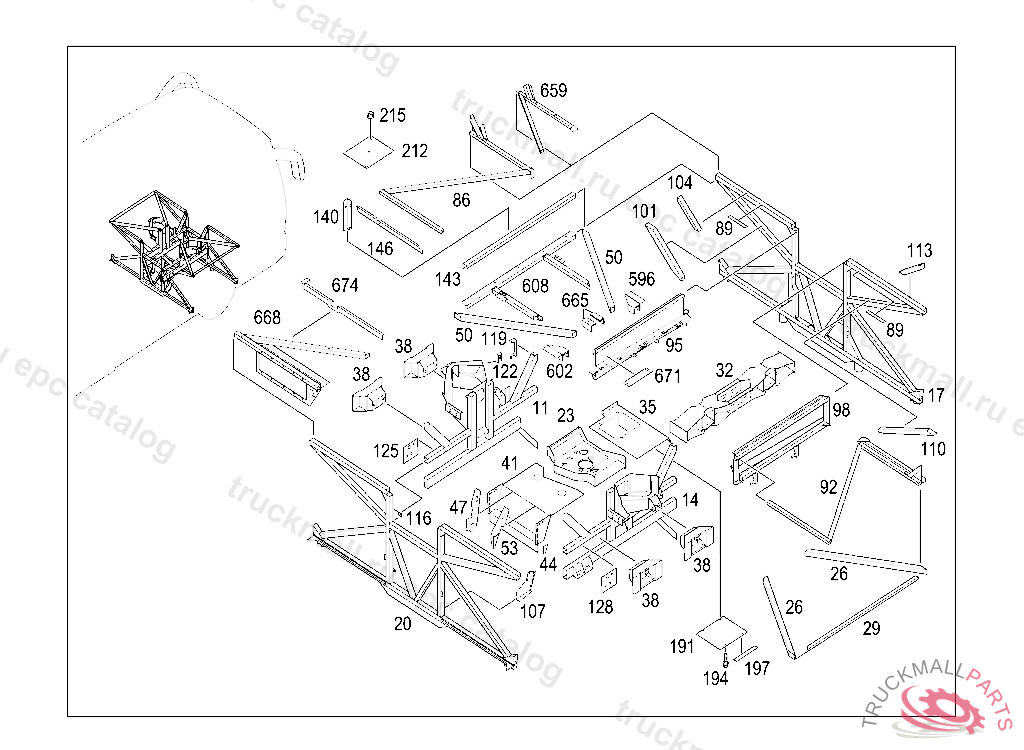

120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 2
Mercedes A6296101012 - ZB WINKEL VST
S 415 HD 629.411
61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 2
Поз.
Артикул
Описание
11
A6296103610
SIDE MEMBER FRONT AXLE,LEFT
14
A6296103710
SIDE MEMBER FRONT AXLE,RIGHT
17
A6296103317
CROSS MEMBER3
20
A6296100721
CROSS MEMBER4
23
A6296107313
SIDE MEMBER , Replaced By: A6326100713
23
A6326100713
SIDE MEMBER
23
A6296100920
CROSS MEMBER
26
A6296110465
SUPPORT1038MM
29
A6296114865
SUPPORT1287MM
32
A6296101320
CROSS MEMBER
35
A6296104408
COVERING FRONT
38
A6296111127
MOUNTING , Replaced By: A6296115027
38
A6296115027
BEARING FORMED PART
41
A6296111708
COVERING REAR
44
A6296119911
PLATE70X43MM
47
A6296110716
REINFORCEMENT LEFT
50
A6296110565
SUPPORT
53
A6296110816
REINFORCEMENT RIGHT
107
A6296102500
BRACKET
116
A6276125211
PLATE18X25MM
119
A6276121824
BRACKET
122
A6296110229
BOW
125
A6296117111
PLATE LEFT 145X120MM
128
A6296112555
PLATE RIGHT 145X120MM
140
A6296101012
ANGLE270MM
143
A6296102817
CROSS MEMBER1280MM
146
A6296126609
ANGLE
191
A6296110808
COVERING272X320MM
194
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
194
N910105006004
SCREW , Replaced By: N914146006102
197
A0009870922
SEALING TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
212
A6296100589
COVER OVER BATTERY
215
N913023006002
NUT BRACKET TO FIRE WALL
596
A6296104200
BRACKET LEFT
602
A6296104300
BRACKET RIGHT
608
A6296105110
SIDE MEMBER
665
A6296101812
ANGLE
668
A6326100110
SIDE MEMBER
674
A6296163812
ANGLE
