Mercedes A6297500344 - ZB LEITTEIL

S 415 HD 629.411

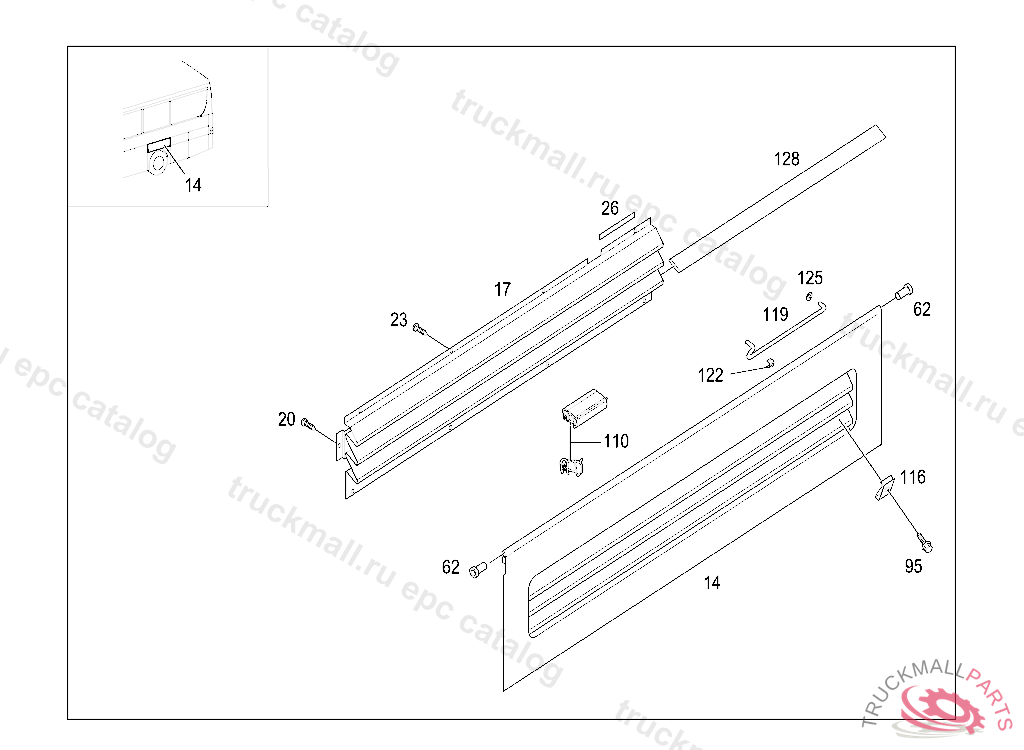

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 6

Поз.
Артикул
Описание
14
A6297500013
FLAP
14
A6297504805
FLAP , UP TO IDENT NO. WKK 629410 13 000094 EXCEPT FOR 100000 - 520000
14
A6297504705
FLAP , UP TO IDENT NO. WKK 629410 13 000094 EXCEPT FOR 100000 - 520000
14
A6297500113
FLAP
17
A6297500344
VENTILATION PART
20
N000000001526
HEXALOBULAR BOLTM5X12
23
N000000000527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
26
A0029890998
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
A0009926205
BUSHING
95
N910105008041
SCREW , Replaced By: N910143008000
110
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
116
A0049941945
NUTM8
119
A6297550083
SUPPORT
122
A0009956914
BRACKET
125
A0009943510
LOCK
125
A0049946245
SPRING NUT , Replaced By: A0009943510
128
A0006827244
INSULATION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
N000125008441
WASHER
