Mercedes A6297541619 - BETAETIGUNGSSTANGE

S 415 HD 629.411

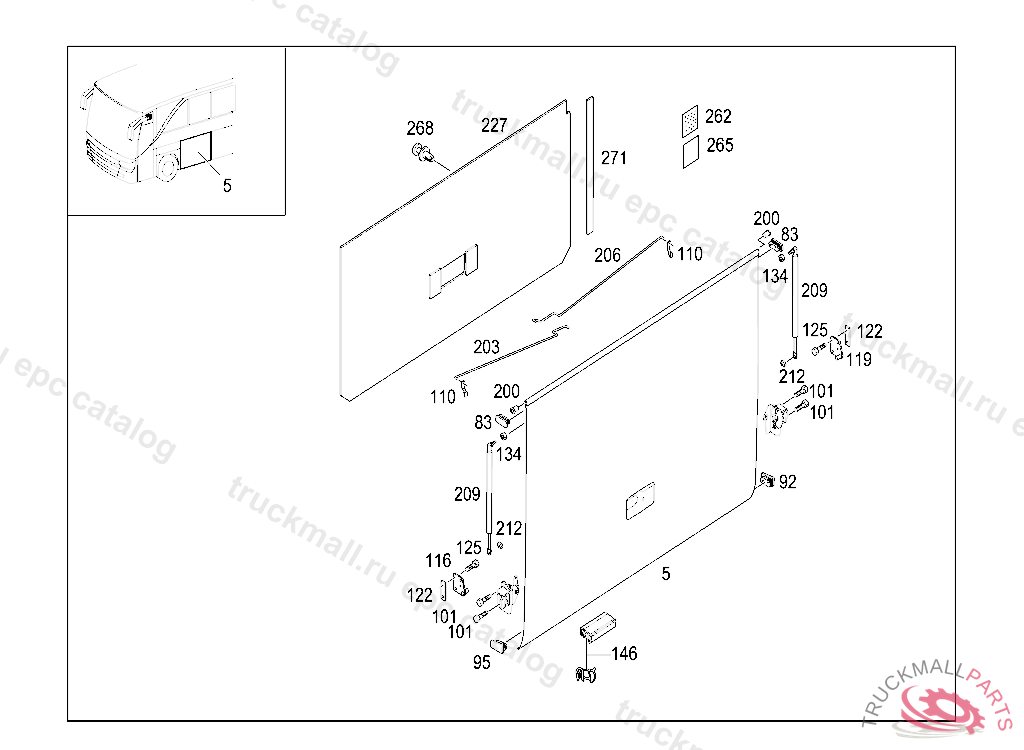

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 13

Поз.
Артикул
Описание
83
A0009877545
LOCKING CAP
92
A0009877745
LOCKING CAP
95
A0009877645
LOCKING CAP
101
N910105006002
HEXAGON HEAD BOLT
110
A0007580042
LOCK
116
A0007580203
STRIKER
119
A0007580303
STRIKER
122
A6297550111
PLATE
125
N910105008041
SCREW , Replaced By: N910143008000
134
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
146
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
200
A0009926205
BUSHING
203
A6297540019
STRUTL646 MM
203
A6297541619
STRUTL686 MM
203
A6297540819
STRUTL118 MM
203
A6297540359
LINKAGEL386MM
203
A6297541319
STRUTL527 MM
203
A6297540219
ROD. STRUTL437 MM
203
A6297541019
ROD. STRUTL175 MM
206
A6297540459
LINKAGEL747MM
206
A6297540919
STRUTL475 MM
206
A6297541119
ROD. STRUTL246 MM
206
A6297540119
STRUTL707 MM
206
A6297541719
STRUTL450 MM
206
A6297540319
ROD. STRUTL498 MM
206
A6297541519
STRUTL587 MM
209
A6297500236
SPRING PNEUMATIC SPRING 320 N
209
A6297500536
SPRING PNEUMATIC SPRING 520 N
209
A6297500336
SPRING PNEUMATIC SPRING 420 N
212
N000471008000
LOCK RING
262
A0019832513
HOOK STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
265
A3569830513
SOFT STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
268
A1269900192
RIVET COVERING TO BRACKET
268
A6389840060
EXPANSION RIVET. CLIP
271
A6297540197
PAD
