Mercedes A6298326415 - HEIZROHR

S 415 HD 629.411

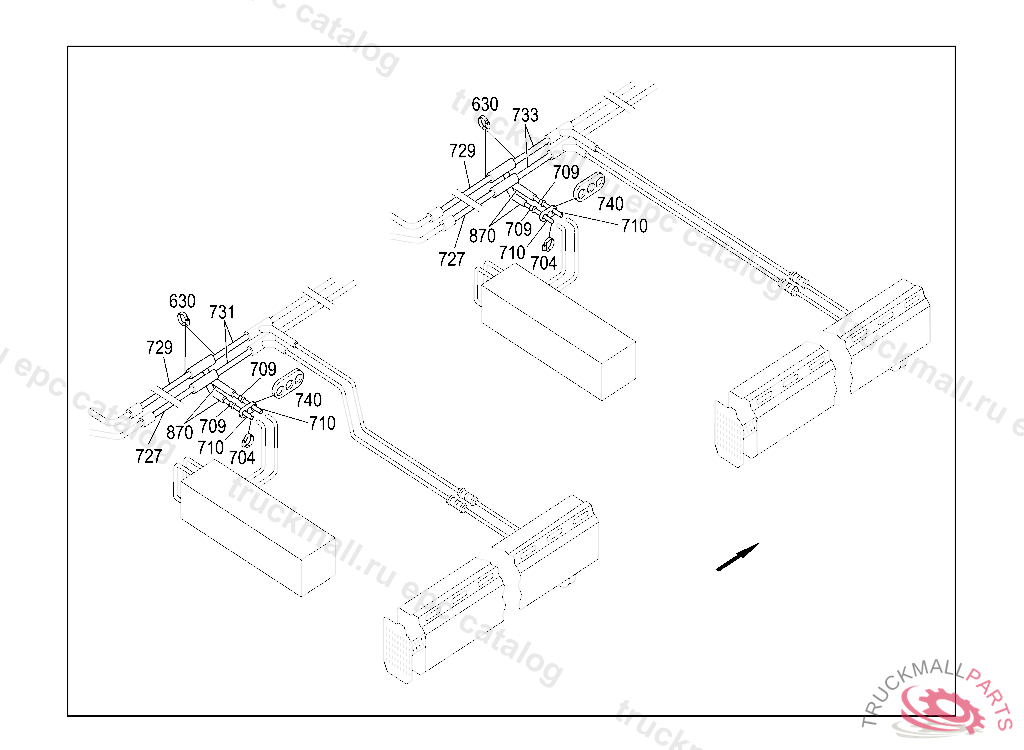

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 19

Поз.
Артикул
Описание
630
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
704
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
704
A0019950642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
704
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
704
N916016015202
CLAMP LINE MOUNTING
709
A0008322425
PIPE SOCKET
710
A3028320396
GROMMET
727
A6298326315
HEATING PIPE
729
A6298326515
HEATING PIPED38/1930MM
731
A6298326615
HEATING PIPE
733
A6298326415
HEATING PIPED38/370MM
740
A0008320896
GROMMET
870
A6298320056
DISTRIBUTORD38/15/38-248MM
999
A0068207842
SERVO-D.C. W.GEARBOX
999
A6298325515
PIPE LINE2430LG
999
A6298325615
PIPE LINE2450LG
999
A6298325915
PIPE LINED38/L2250MM
999
A6298326015
PIPE LINE2270LG
999
A6298328229
PIPE LINE
