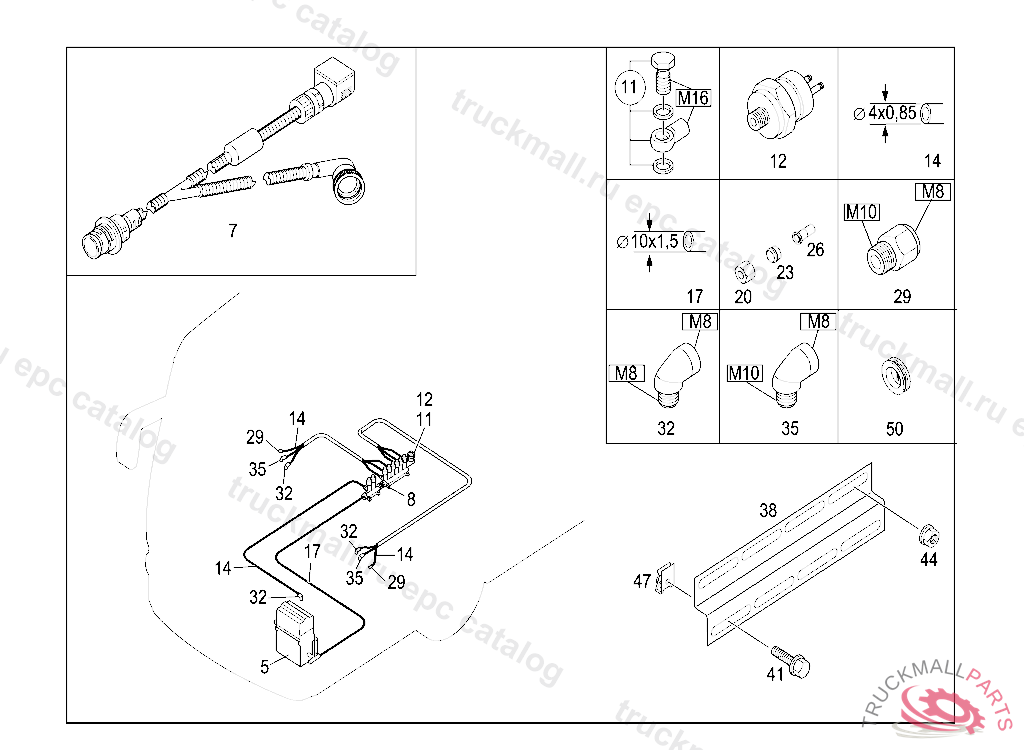

Поз.
Артикул
Описание
5
PUMPKFB1-S2+924
5
PUMP ,WKK 629001 13 520218
7
CABLE HARNESSTO: A 000 570 07 02
8
DISTRIBUTOR FRONT,WKK 629410 13 103135WKK 629411 13 103136
8
DISTRIBUTOR FRONT,WKK 629410 13 103136WKK 629411 13 103137
11
ELBOW FITTING LUBRICATING LINE TO DISTRIBUTOR VOGEL,M 16X1.5/16X1.5
11
ELBOW FITTING , Replaced By: A0049903971
12
SWITCH , Replaced By: A0035450614
12
SWITCH , Replaced By: A0035452014, +001A0029906771, +001N007603016401
14
HOSE FROM DISTRIBUTOR TO LUBRICATING POINTS 4X0.85 MM, ORDER BY THE METER
17
HOSE , ORDER BY THE METER, Replaced By: A0259978682
20
FITTING , Replaced By: A0009974334
23
SEAL CONE , Replaced By: A0019909567
26
PIN BUSHING FOR LINE CONNECTION BEKA-MAX , TO 025 997 86 82
26
PIN BUSHING , Replaced By: A0005730753
29
CONNECTOR TRAILER COUPLING,FRONTVOGEL
29
CONNECTOR TRAILER COUPLING,FRONT BEKA-MAX
32
ELBOW , Replaced By: A0005733530
35
ELBOW LINE CONNECTIONS VOGEL, M 10X1
38
"Z" SECTION170MM
38
"Z" SECTION225LG
41
SCREW PUMP TO BRACKET
44
NUT
47
LOCK NUT. SPRING NUT MOUNTING PARTS
47
NUTM8
50
GROMMET FOR CABLE HARNESS DIA.: 10-14MM
