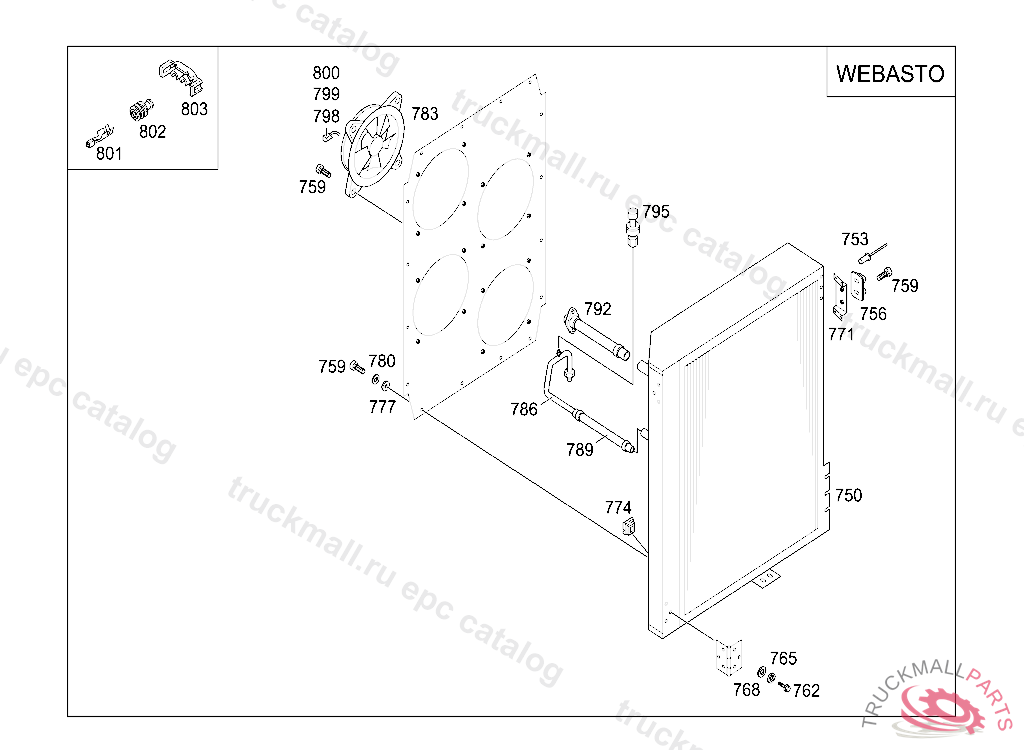

Mercedes N000127008203 -

750

EVAPORATOR CONDENSER

750

EVAPORATOR , TO IDENT-NO. WKK 629411 13 000097

753

BLIND RIVET4X7,6MM

756

FASTENING PLATE BUFFER TO DOOR

759

SCREWM6X20, Replaced By: A0039909012

759

SCREW PRESSURE SENSOR M6X20 TX30 TO A 003 431 62 06

762

SCREW BRACKET TO SUPPORT

768

WASHER TRAILER PLUG SOCKET TO BRACKET

771

PLATE

771

PLATE

774

LOCK. NUT , Replaced By: A0039941745

777

WASHER LINE MOUNTING

780

LOCK WASHER CABLE TO FUSE BOX

783

BLOWER

786

PIPELINE

789

HOSE COLLECTOR 750MM, FROM ID-NO. WKK 629411 13 000098

789

HOSE COLLECTOR 750MM, TO IDENT-NO. WKK 629411 13 000097

792

HOSE COMPRESSOR 750MM, TO IDENT-NO. WKK 629411 13 000097

792

MOLDED HOSE CONDENSER-TO-COMPRESSOR CONNECTING PIPE

795

TEMPERATURE SENSOR

798

ELECTRIC CABLE

798

LINE750 MM, Replaced By: A0015465314

799

PLUG

800

RECEPTACLE HOUSING

801

CONTACT SPRING

802

BOOT. GASKET

803

LOCKING MECHANISM

999

COIL SOLENOID VALVE

999

ADHESIVE LABEL DO NOT ENTER

999

INSULATING TAPE REFRIGERANT 2X60MM

999

SEALNW8

999

FITTING

999

SEALING RING26X2MM

999

SEALING RING32X2,5MM

999

LOOM TIE

999

LEDGEM6

999

OUTLET LEFT AND RIGHT, UP TO IDENT NO. 103041 EXCEPT FOR 102603,102680,102700,102714,102727,102738,102754-102762,102766,102771-102774,102777-102781,102787- 102793,102809-102811,102816,102817,102819-102822,102824,102827-102829,102832-102835,102837-102840, 102842,102881,102882,102885-102893,102895,102896,102898,102899-102905,102907-102909,102911-102913, 102916-102918,102920,102921,102923,102925,102926,102928-102933,102937-102942,102944,102945,102947- 102951,102955-102959,102962-102967,102969,102970,102974-102982,102985,102986,102988-103012,103014- 103025,103027-103041.

999

VALVE

999

AIR CONDITIONERWEBASTO

999

SCREWM6X20
