Mercedes A0049974290 - BINDER

S 415 HD 629.411

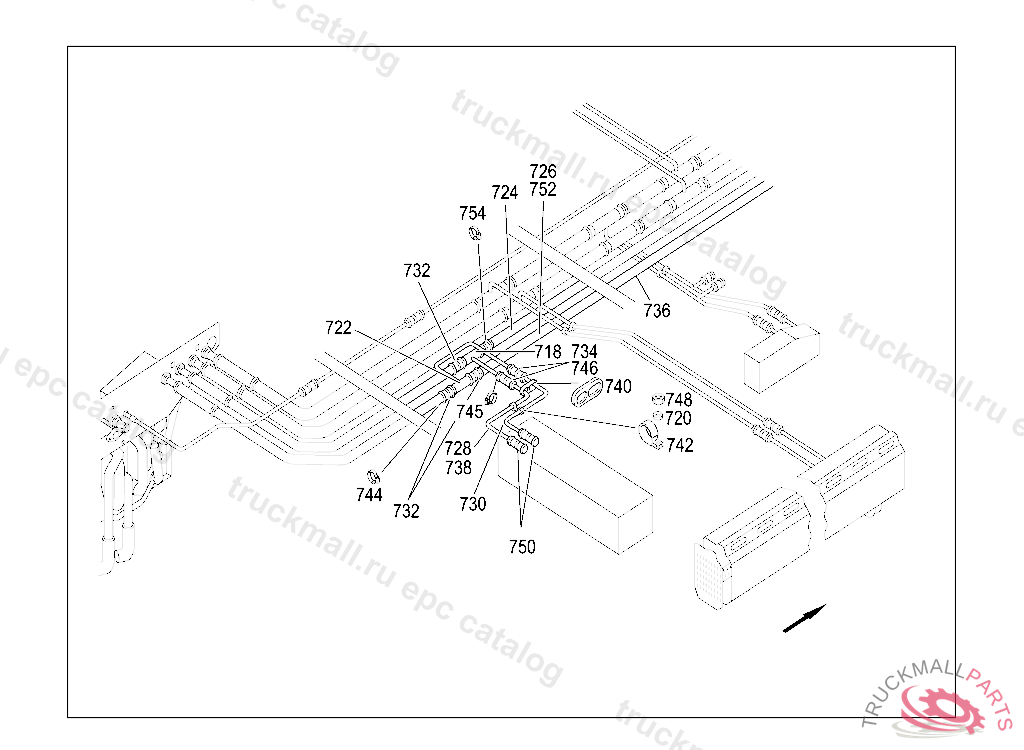

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 16

Поз.
Артикул
Описание
718
A6298302915
PIPE LINE
720
A0009943610
LOCK
722
A6298303015
PIPE LINE
724
A6298326317
PIPE LINE
726
A6298326417
PIPE LINE
728
A6298328821
PIPE LINE
730
A6298328921
PIPE LINE
732
N900271028000
HOSE
734
A0249974082
RADIATOR HOSE. HOSED14,5X23,5X100MM, Replaced By: N000000004960
736
A0008324923
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
738
A0008326823
HOSE 1500 LG.
740
A0008320896
GROMMET
742
N916016028200
CLAMP STAY TO BRACKET
744
A0019951144
CLAMP35.6-37.3 MM
745
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
746
A0089974790
HOSE CLAMP. HOSE CLAMP , Replaced By: N000000000666
748
N910112006001
NUT , Replaced By: N913023006001
750
A0269975382
HOSE12X21X80MM, Replaced By: N000000004942
752
A6298326617
PIPE LINE
754
A0049974290
HOSE CLAMP. HOSE CLAMP LESS TOILET 20-21MM, Replaced By: N000000000666
999
A0068207842
SERVO-D.C. W.GEARBOX
999
A6298325515
PIPE LINE2430LG
999
A6298325615
PIPE LINE2450LG
999
A6298325915
PIPE LINED38/L2250MM
999
A6298326015
PIPE LINE2270LG
999
A6298328229
PIPE LINE
