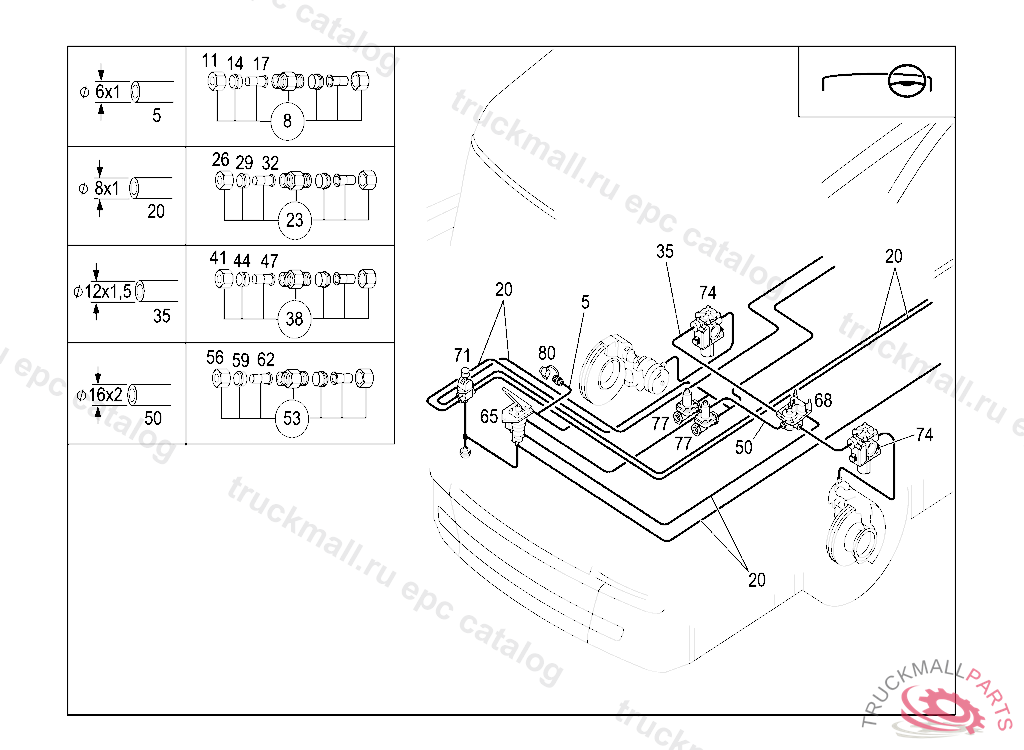

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
UNION NUT
14
GLAND , Replaced By: A0019901667
14
SEAL CONE
17
SLEEVE LEAK LINE
20
PLASTIC PIPE AERATION, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE
26
UNION NUT LINE CONNECTION
29
GLAND LINE CONNECTION
32
SLEEVE LINE CONNECTION
35
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
38
FITTING (PARTS KIT),LINE RUPTURE
41
UNION NUT LINE CONNECTION, Replaced By: N000000006239
41
UNION NUT LINE CONNECTION
44
GLAND , Replaced By: N003861012007
47
SLEEVE LINE CONNECTION
50
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
53
FITTING (PARTS KIT),LINE RUPTURE
56
UNION NUT
59
GLAND
62
SLEEVE
65
BRAKE VALVE
68
PROPORTIONING VALVE (RELAY VALVE),FRONT AXLE 12.5BAR
68
PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
71
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL KNORR, 14.08
74
VALVE PRESSURE CONTROL VALVE ABS
77
VALVE , Replaced By: A0044293144
77
VALVE (OVERFLOW VALVE) WABCO
80
TEST CONNECTIONM16X1.5/M16X1.5
999
CABLE TIE , Replaced By: A0049971890
999
CABLE TIE LINE MOUNTING 375X8.4MM
