Главная
Mercedes
BUS
S 415 HD
629.411
63 SIDE PANELS
420 LEFT SIDE PANELLING IL. 1

Mercedes A6296379797 - Unterlage

S 415 HD 629.411

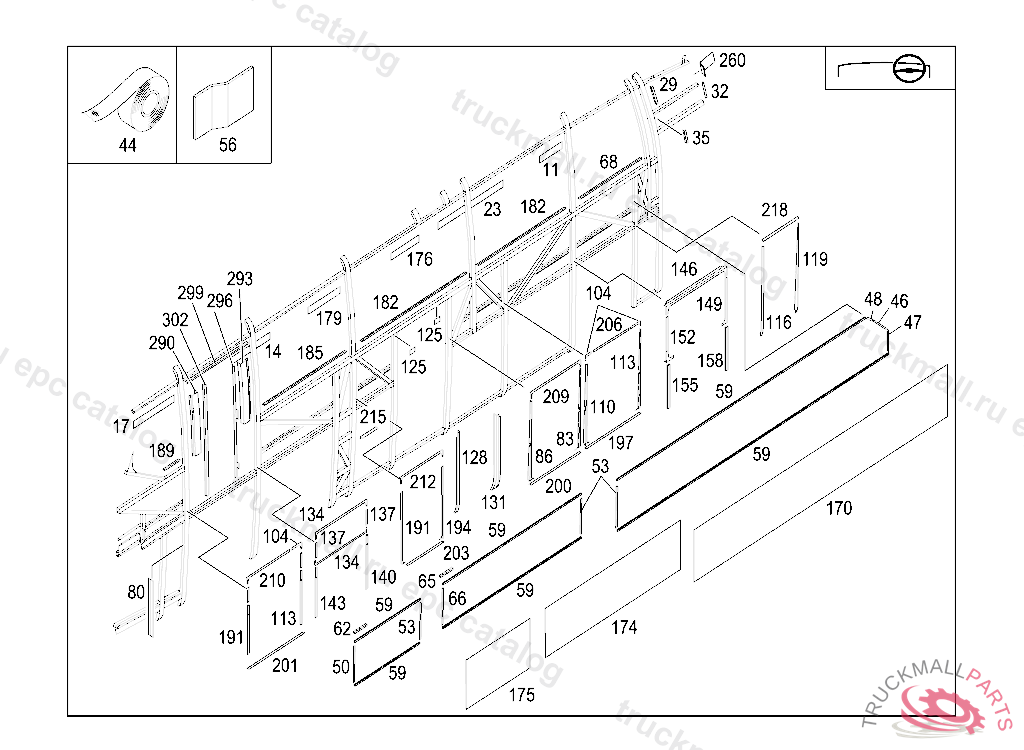

63 SIDE PANELS - 420 LEFT SIDE PANELLING IL. 1

Поз.
Артикул
Описание
11
A6296370979
PANELLING AIR INTAKE 199MM
14
A6296370579
PANELLING
17
A6296370179
PANELLING AIR INTAKE 199MM
23
A6296371179
PANELLING
29
A6296020912
ANGLE
32
A6296021212
ANGLE
35
A6296021012
ANGLE275LG
44
A0079894185
ADHESIVE TAPE
44
A0069890485
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
46
A6296370395
PAD
47
A6296370495
PAD
48
A6296372595
PAD
50
A6296370295
PAD
53
A6296370595
PAD
56
A6296372414
BRACKET150LG
59
A6326370034
RAIL
59
A6296379797
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
A6296370195
PAD
65
A6296379097
PAD30MM
66
A6296372895
PAD
68
A6296373572
ANGLE SIDE WINDOW PANES 1735MM
80
A6296377012
ANGLE1000LG
83
A6296370512
ANGLE1090MM
86
A6296370712
ANGLE LATERAL 1090MM
104
A6296370015
REINFORCEMENT
110
A6296379872
ANGLE LEFT
113
A6296379972
ANGLE RIGHT
116
A6296370012
ANGLE
119
A6296370212
ANGLE1090LG
125
A6296372395
PAD20X8X28MM
128
A6296370307
PANELLING DOOR CENTRAL PILLAR
131
A6296370207
PANELLING DOOR CENTRAL PILLAR 1198MM
134
A6296373112
ANGLE TOP
137
A6296378772
ANGLE
140
A6296376512
ANGLE
143
A6296376612
ANGLE LATERAL
146
A6296373112
ANGLE TOP
146
A6296373592
ANGLE1074LG
149
A6296379572
ANGLE LATERAL
152
A6296379472
ANGLE LATERAL
155
A6296376612
ANGLE LATERAL
158
A6296376512
ANGLE
170
A6296372209
PANELLING
170
A6296373609
PANELLING
174
A6296374609
PANELLING
174
A6296374709
PANELLING
175
A6296374509
PANELLING
176
A6296370279
PANELLING
179
A6296370379
PANELLING AIR INTAKE 657MM
182
A6296370472
ANGLE2135LG
185
A6296370772
ANGLE1570MM
189
A6296376592
ANGLE
191
A6296370412
ANGLE1090LG
194
A6296370612
ANGLE LATERAL 1090MM
197
A6296371312
ANGLE BOTTOM 1474LG
200
A6296371812
ANGLE BOTTOM 1234MM
200
A6296371512
ANGLE BOTTOM 1054LG
201
A6276370092
ANGLE
201
A6276371512
ANGLE
203
A6296371912
ANGLE BOTTOM 524LG
203
A6296371612
ANGLE704LG
206
A6296371092
ANGLE
209
A6296371012
ANGLE TOP 1054MM
209
A6296372012
ANGLE1234LG
210
A6326371012
ANGLE SIDE WINDOW PANES 805MM
210
A6326374812
ANGLE
212
A6296371112
ANGLE704LG
212
A6296372112
ANGLE TOP 524MM
215
A6296374972
ANGLE TOP 220LG
218
A6296373072
ANGLE TOP
260
A6296379992
ANGLE
290
A6296300527
PANELLING
293
A6296300627
PANELLING
296
A6296375792
ANGLE
299
A6296375892
ANGLE
302
A6296376992
ANGLE
