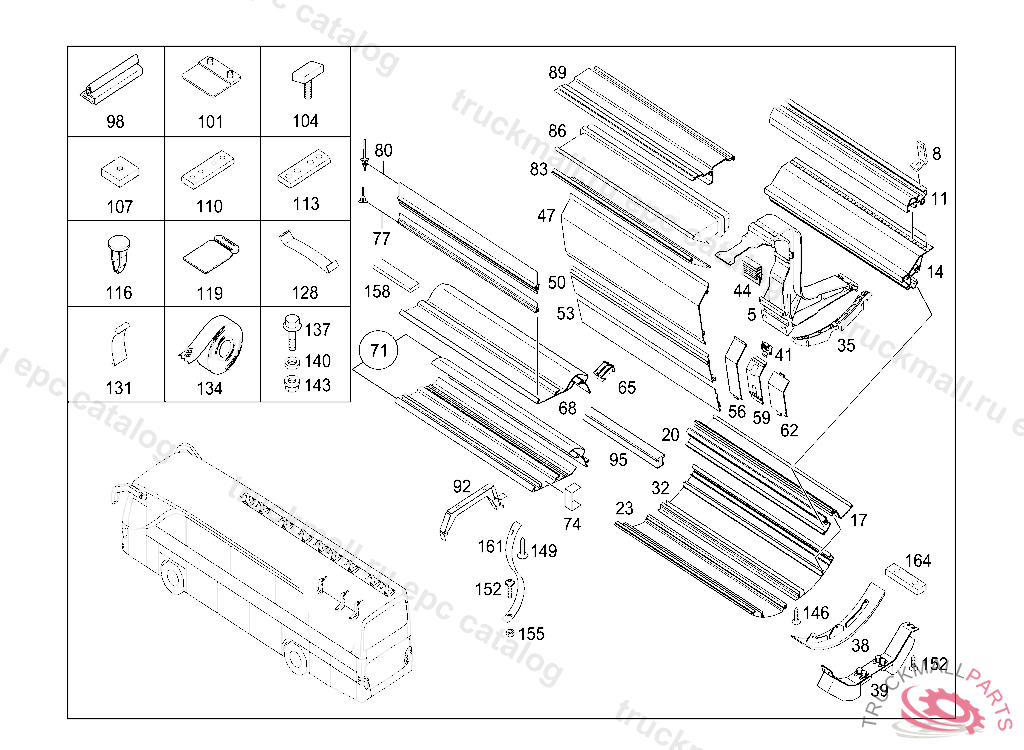

Поз.
Артикул
Описание
5
BRACKET
5
BRACKET
8
BRACKET
11
MOUNTING RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
RAIL , TO BE ADAPTED DURING ASSEMBLY
14
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
MOUNTING RAIL FRONT LEFT 4808MM
14
MOUNTING RAIL FRONT RIGHT 4808MM
17
RAIL6000MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
RAIL , TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
23
RAIL CLIPPED, SERVICE SIDE, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
23
RAIL SCREWED, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298362320, +001A6298362220
23
RAIL CLIPPED, SERVICE SIDE, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298367927
32
RAIL SCREWED, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298362220, +001A6298362320
32
RAIL CLIPPED, VISUAL SIDE, TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298367627
32
RAIL
35
REINFORCEMENT
38
COVERING
39
SEAL
41
FASTENER
44
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
PANELLING
50
RAIL REAR LEFT 5935MM
50
RAIL , TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
50
RAIL CENTRAL RIGHT 3265MM
50
COVER RAIL FRONT LEFT 4790MM
50
COVER RAIL FRONT RIGHT 4790MM
50
RAIL REAR RIGHT 5935MM
50
RAIL CENTRAL LEFT 3241MM
53
LEDGE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
56
COVERING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
59
COVERING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
62
COVERING
65
BRACKET
68
RAIL , Replaced By: A6298362620
68
RAIL
68
RAIL , TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
RAIL , FROM ID-NO. WKK 629410 13 000179 FROM ID-NO. WKK 629411 13 000495 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
74
BRACKET
77
COVERING LENS, TO BE ADAPTED DURING ASSEMBLY
80
COVERING
83
RAIL , TO BE ADAPTED DURING ASSEMBLY
86
PIPE SOCKET
86
PIPE SOCKET , TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494
89
MOUNTING RAIL FRONT LEFT 2417MM
89
MOUNTING RAIL REAR LEFT 5919MM
89
MOUNTING RAIL FRONT RIGHT 2417MM
89
RAIL , TO BE ADAPTED DURING ASSEMBLY
89
MOUNTING RAIL REAR RIGHT 5919MM
92
REINFORCEMENT
95
SEAL7MM, TO BE ADAPTED DURING ASSEMBLY
98
LEDGE , TO BE ADAPTED DURING ASSEMBLY
101
COVERING
104
SCREW F CRANKCASEM8X30
104
T-SCREW
104
T-SCREWM 6X16
107
NUTM8
110
SHACKLE
113
SHACKLE
116
LOCK
116
LOCK
119
FLAP BREAK PULSE
128
COVERING
131
COVERING
134
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
SEAL10X10MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
137
SCREW , Replaced By: N910143008000
140
WASHER BRACKET TO CAB REAR PANEL
140
WASHER COMPRESSED AIR LINE TO BRACKET
143
NUT HORN TO BRACKET M8
146
TAPPING SCREW CONTROL UNIT TO FIRE WALL
149
SHEET METAL SCREW BRACKET TO SUPPORT
149
TAPPING SCREW4,2X16
152
SCREW MOUNTING OF INSTRUMENT PANEL
152
SCREW. HEXALOBULAR BOLTM5X8
155
NUT
158
FOAM PLASTICS35X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
161
BAND
164
CONNECTOR
