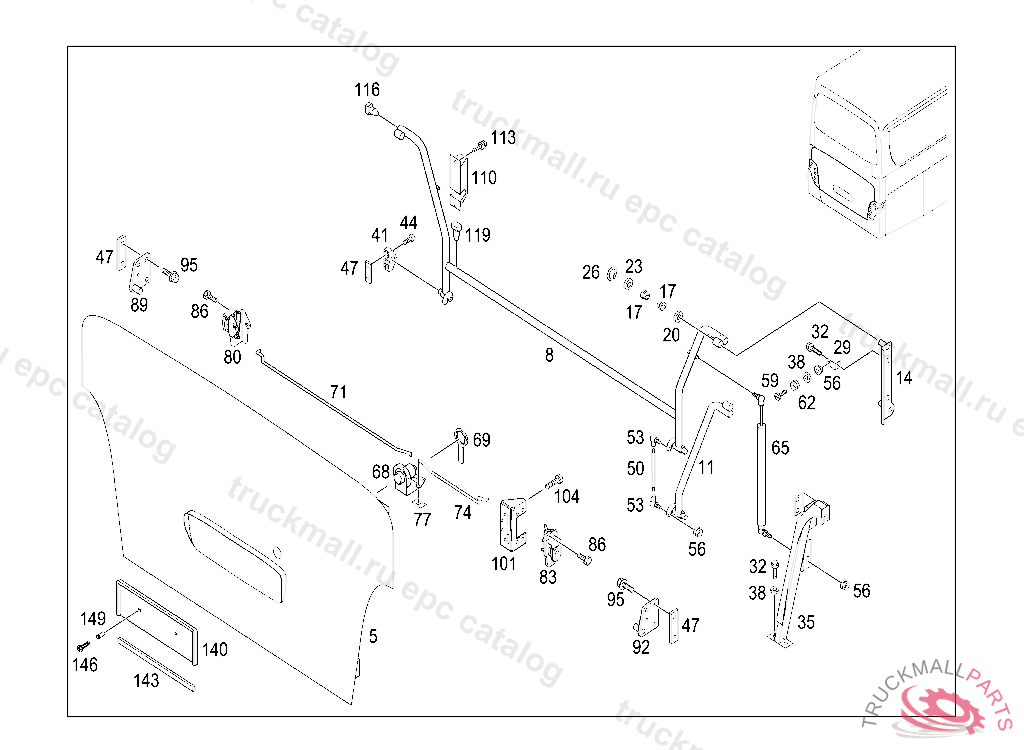

Поз.
Артикул
Описание
5
FLAP
5
FLAP , Replaced By: A6297503103, +002A6297570531, +008N000000001476
8
ARM
11
ARM RIGHT
11
ARM LEFT
14
PLATE RIGHT
14
PLATE LEFT
17
SLEEVE
20
WASHER PULLEY TO AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
23
SEAL RING VALVE TO VALVE,K 025179
26
LOCK RING , 385.068,069 ON VEHICLES WITH DB CAB ONLY 385.019 FOR USE WITH SHORT MERCEDES-BENZ CAB
29
ANGLE
32
SCREW BRACKET TO CAB REAR PANEL M 8X20
35
CONSOLE LEFT
35
CONSOLE RIGHT
38
WASHER BRACKET TO CAB REAR PANEL
41
BRACKET
44
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
47
PLATE
50
THRUST ROD
53
JOINT
56
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
59
RUBBER BUFFERM8X30
62
NUT OPERATING ROD
65
SPRING PNEUMATIC SPRING 770N
68
BAR LOCK
69
LEVER
71
ROD
74
ROD
77
LOCK
80
LOCK
83
LOCK
86
HEXAGON HEAD BOLT
89
STRIKER
92
STRIKER
95
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
101
CONSOLE
104
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
110
EXPANSION PLUG RIGHT
110
EXPANSION PLUG LEFT
110
EXPANSION PLUG RIGHT
110
EXPANSION PLUG LEFT
113
TAPPING SCREW MOUNTING PLATE 3.5X9.5
116
PLUG
119
PLUG
140
BRACKET
143
BRACKET
146
SHEET METAL SCREW BRACKET TO SUPPORT
149
GROMMET
