Mercedes A0029891498 - DICHTUNGSBAND TEROST

S 415 HDH 629.421

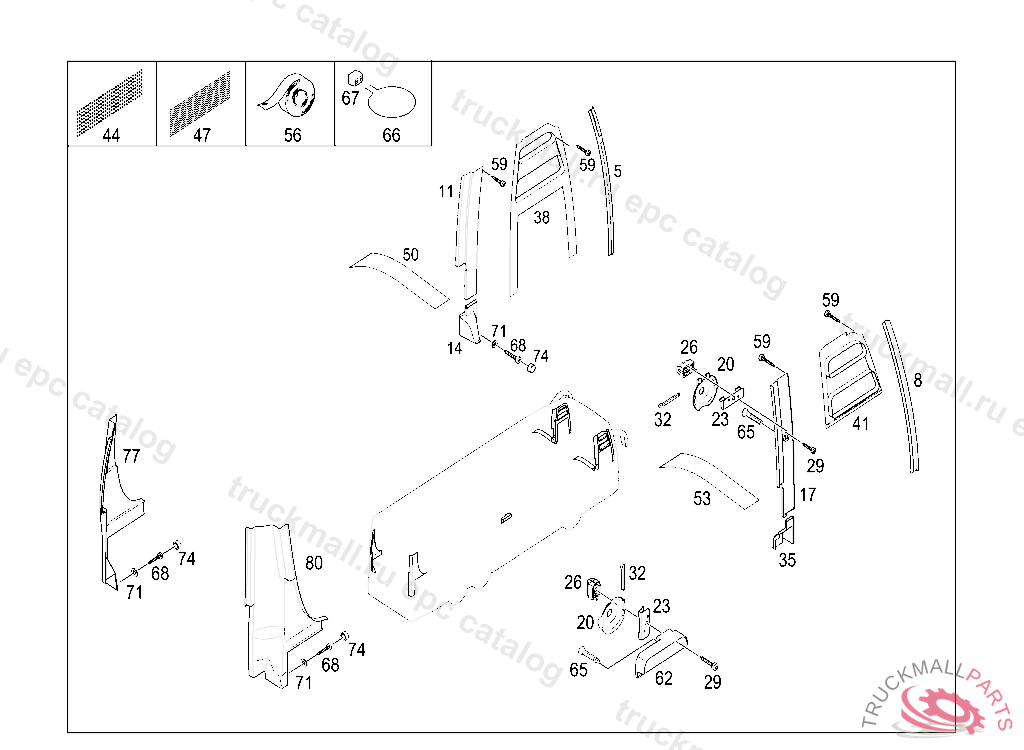

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 3

Поз.
Артикул
Описание
5
A6296880706
PANELLING A-PILLAR,LEFT
8
A6296880806
PANELLING A-PILLAR,RIGHT
11
A6296924801
PANELLING B-PILLAR ON THE LEFT, UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
14
A6296925001
PANELLING B-PILLAR ON THE LEFT, UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
17
A6296924901
PANELLING B-PILLAR ON THE RIGHT
20
A3566910027
COVER
23
A3016910335
SPRING
26
A3016910021
MOUNTING
29
N000000000447
TAPPING SCREW BRACKET MOUNTING
32
N000094002064
COTTER PIN ROD TO INTERMEDIATE LEVER
35
A6296925201
PANELLING B-PILLAR ON THE RIGHT
38
A6296924601
PANELLING , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
41
A6296924701
PANELLING
44
A0019832313
SOFT STRAP25 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
A0019832413
HOOK STRAP25 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
50
A6296924200
PANELLING LALINEA
53
A6296924300
PANELLING LALINEA
56
A0029891498
SEALING STRIP
59
N000000000478
TAPPING SCREW3.5X19
62
A6296926601
PANELLING
65
A0029900120
SCREWM6X20
66
N001367000004
SEAL WIRE
67
A0009882370
LEAD SEALD9MM
68
A0019904836
SHEET METAL SCREW. SCREWST25X 6 T20
71
N000000003738
WASHER4MM
74
A0009877045
LOCKING CAP
77
A6296940625
PANELLING
80
A6296940725
PANELLING
999
A0079893671
ADHESIVE
