Mercedes A6298300464 - ZB VERKLEIDUNG S415

S 415 HDH 629.421

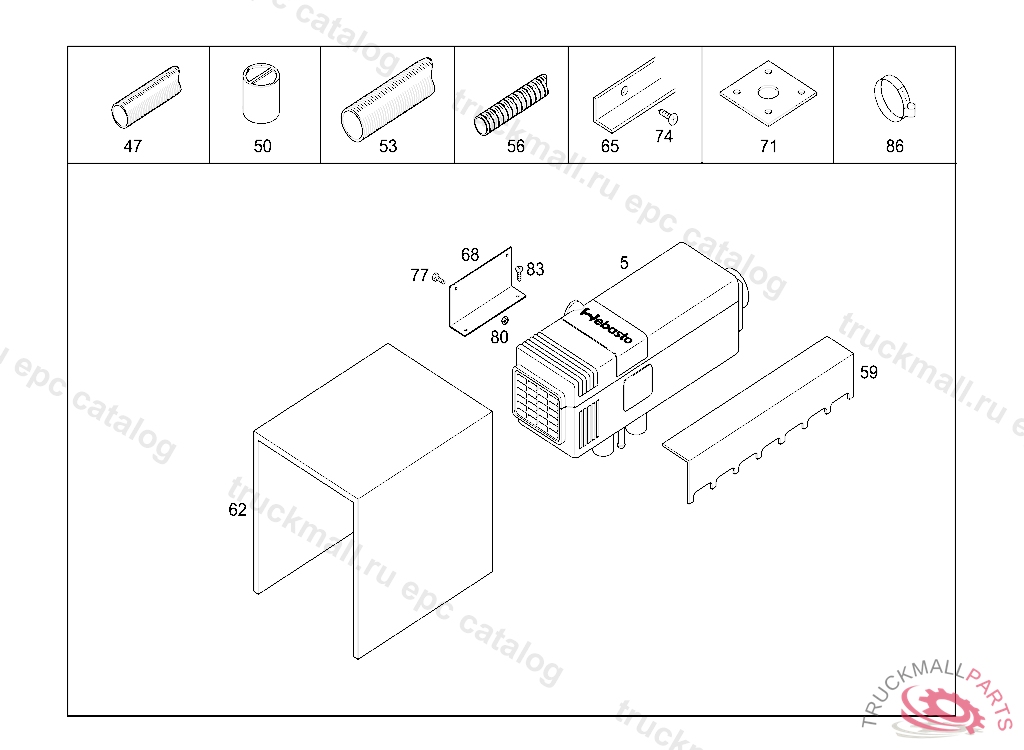

83 HEATING AND VENTILATION - 310 HEATING WC IL. 1

Поз.
Артикул
Описание
5
A0018300820
HEATERAIR TOP 2000S 24V
5
A0008306420
HEATER UNITAIR TOP 2000D 24V, Replaced By: A0018300820
47
A0008320188
HOSE AIR INTAKE 22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
50
A0005060833
CAP (INTAKE HOSE)
53
A0008320288
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
56
A0008354197
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
59
A6298300464
PANELLING
62
A6298300713
COVERING
65
A6298350012
ANGLE1510MM
65
A6298350112
ANGLE1510MM
68
A6298351314
BRACKET
71
A6298350009
COVERING
74
N000000000475
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
74
N000000000477
TAPPING SCREW3,5X16MM
77
N910105006002
HEXAGON HEAD BOLT
80
N910112006001
NUT , Replaced By: N913023006001
83
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
86
N000000000671
CLAMP
