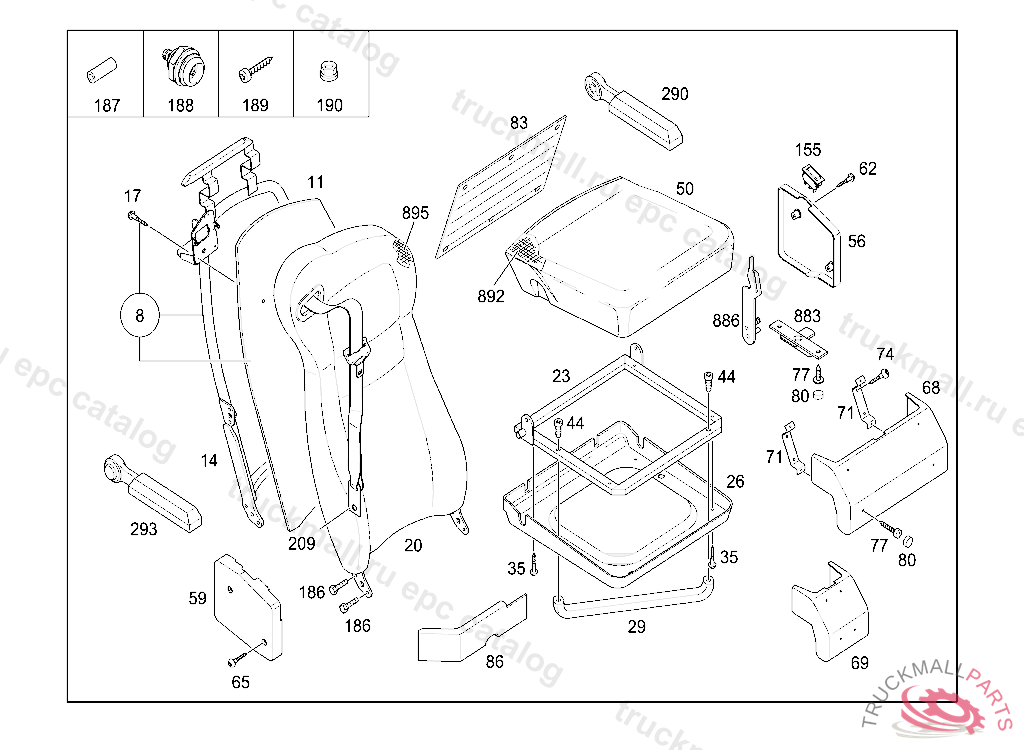

Поз.
Артикул
Описание
8
BACKREST
11
BACKREST SHELL
14
BACKREST FRAME
17
SCREW
20
SEAT ADAPTER
23
FRAME
26
SEAT SHELL
29
HANDLE ON SIDE OF AISLE AND ON SIDE OF WALL
35
SCREW ASHTRAY MOUNTING
44
SCREWM8X16
50
SEAT CUSHION , STATE IDENT NO. WHEN ORDERING
56
COVERING LEFT
59
COVERING RIGHT
62
TAPPING SCREW3.5X22
65
TAPPING SCREW FOR GRIP HANDLE
68
COVERING
69
COVERING
71
BRACKET
74
TAPPING SCREW BRACKET MOUNTING
77
SHEET METAL SCREW. SCREWST25X 6 T20
80
LOCKING CAP
83
COVERING
83
COVERING
86
COVERING
155
SWITCH
186
SCREWM 8X12 T 40
186
SCREW , Replaced By: N910143008002
187
BUSHING
188
SWITCH MICRO-SWITCH
188
SWITCH
189
TAPPING SCREW RAIL
190
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
209
SAFETY BELT
290
FOLDING ARMREST LEFT
293
FOLDING ARMREST RIGHT
883
LOCK
886
LEVER
892
COVER SEAT CUSHION, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
892
COVER SEAT CUSHION, COVER LIKE DRIVER SEAT (RECARO), DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
892
COVER , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
892
COVER , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
892
CUSHION COVER SEAT FOR CLIMATE-CONTROLLED SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
895
COVER BACKSEAT, COVER LIKE PASSENGER SEAT, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
895
COVER , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
895
COVER , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
895
COVER BACKREST, COVER LIKE DRIVER SEAT (RECARO), DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
999
DRIVE SHAFT
999
SPINDLE
999
GEAR
