Mercedes N000000005570 - БОЛТ С ШЕСТИГР. ГОЛОВКОЙ

S 415 HDH 629.421

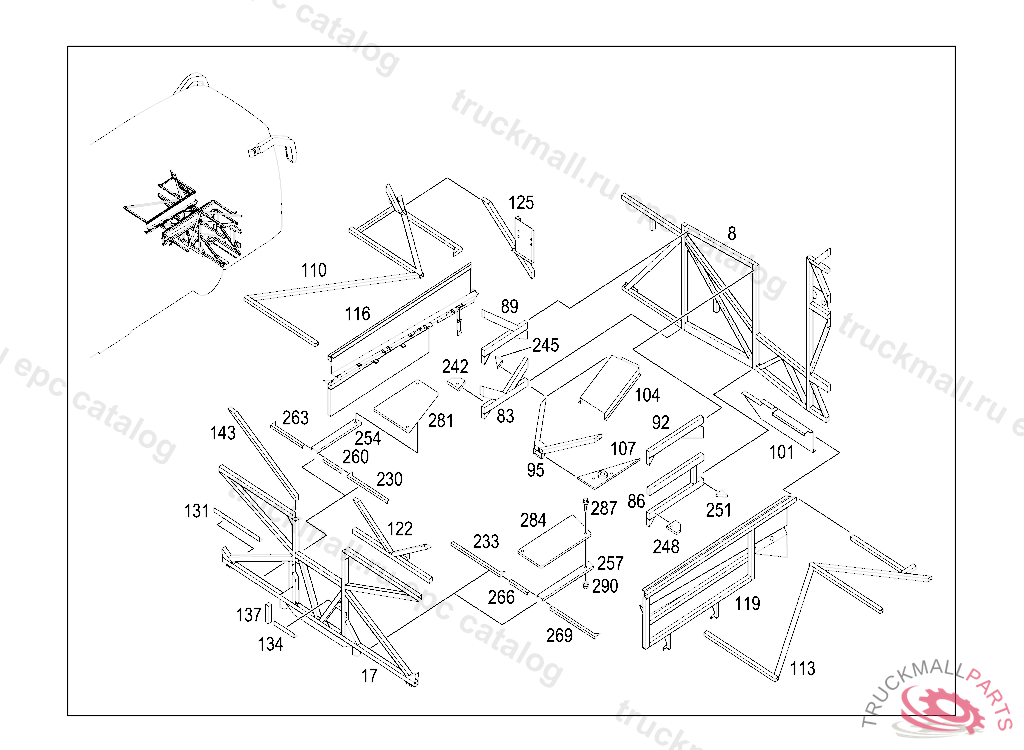

61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 2

Поз.
Артикул
Описание
8
A6296105017
CROSS MEMBERQT 2
8
A6296102517
CROSS MEMBERQT 2, Replaced By: A6296105017
17
A6296103317
CROSS MEMBER3
83
A6296102110
SIDE MEMBER
86
A6296105109
SUPPORT
89
A6296107010
SIDE MEMBER
89
A6296102210
SIDE MEMBER , Replaced By: A6296107010
92
A6296105009
SUPPORT
95
A6296107523
SUPPORT
101
A6296666728
ROCKER PANEL
104
A6296103308
COVERING
107
A6296100331
CONSOLE
107
A6296100131
CONSOLE , Replaced By: A6296100331
110
A6296107710
SIDE MEMBER
110
A6296108623
SUPPORT , Replaced By: A6296107710
113
A6296108723
SUPPORT , Replaced By: A6296107910
113
A6296107910
SIDE MEMBER
116
A6296109710
SIDE MEMBER
116
A6296107623
SUPPORT
119
A6296109810
SIDE MEMBER
119
A6296108823
SUPPORT
122
A6296107810
SIDE MEMBER
122
A6296100227
DIAGONAL GIRDER , Replaced By: A6296107810
125
A6296101413
SIDE MEMBER
131
A6296121128
REST
134
A6296114012
ANGLE
137
A6296124150
STRUT
143
A6296124450
STRUT
230
A6296121512
ANGLE
233
A6296113212
ANGLE
242
A6296117755
PLATE
245
A6296117855
PLATE
248
A6296117955
PLATE
251
A6296118055
PLATE
254
A6296111918
RAIL
257
A6296112018
RAIL
260
A6296119512
ANGLE
263
A6296119312
ANGLE
266
A6296119612
ANGLE
269
A6296119412
ANGLE
281
A6296118155
PLATE
284
A6296118255
PLATE
287
N000000005570
SCREW SHOCK ABSORBER BRACKET TO BEARING BRACKET M18 X 1.5 X 200 MM
287
N910105018035
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M18X1.5X200
290
N913023018002
NUT RETARDER HOUSING TO TRANSMISSION CASE
290
N000000005739
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
