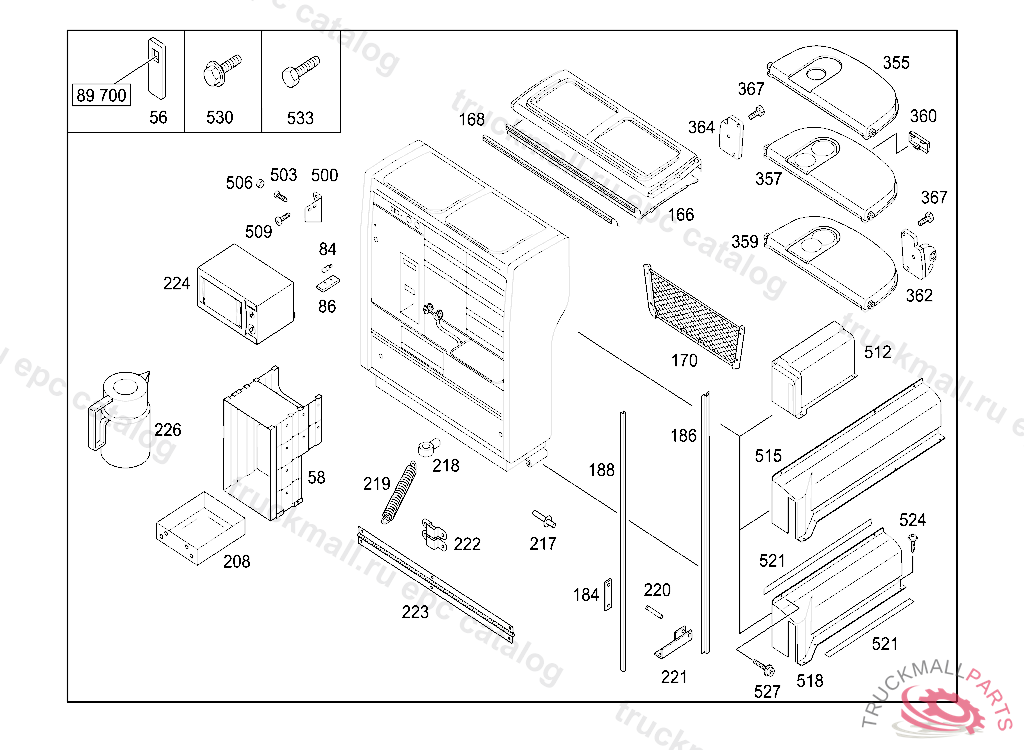

Поз.
Артикул
Описание
56
STRIKER PLATE
58
HOUSINGSCHRANK-GEHAEUSE GROSS
58
DRAWER COMPARTMENTSCHRANK GEHAEUSE KLEIN
84
LIGHT EMITTING DIODE
84
BULB24V/5W
86
SOCKET
86
INTERIOR LAMP
166
FLAP TOP
168
LEDGE
170
LUGGAGE NET
170
ROOF RACK
184
STOP LEFT
184
STOP RIGHT
186
LEDGE LEFT
186
LEDGE RIGHT
188
RAIL
208
DRAWER MAJOR
208
DRAWER COMPARTMENT MAJOR
208
DRAWER MAJOR, Replaced By: A0008401902
208
DRAWER MINOR
217
GUIDE
218
EYE BOLT
219
TENSION SPRING
220
PIN
221
BRACKET RIGHT
222
HOOD HINGE
223
HOOD HINGE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 07.2007
223
HOOD HINGE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 07.2007
224
MICROWAVE
226
THERMOS BOTTLE , Replaced By: A0008453423, +001A0008450324
226
THERMOS
355
FOLDING TABLE WITH HOLE
357
FOLDING TABLE CUP HOLDER
357
FOLDING TABLE CUP HOLDER
359
FOLDING TABLE WITH HOLE
359
FOLDING TABLE WITH HOLE, Replaced By: A6298103666
360
COVERING
362
CONSOLE LEFT, Replaced By: A6298161331
362
CONSOLE LEFT
362
CONSOLE LEFT
362
CONSOLE LEFT
364
CONSOLE RIGHT, Replaced By: A6298161631
364
CONSOLE RIGHT, Replaced By: A6298161431
364
CONSOLE RIGHT
364
CONSOLE RIGHT
367
SCREW, SPECIAL SHAPE. SCREWM4 X 16
500
BRACKET LEFT
503
SCREW SPEED SENSOR TO REAR AXLE
503
SCREWM8X40
503
SCREW PIPE ELBOW TO BRACKET M8X12
506
PROTECTION CAP MOUNTING TO BODY
509
SCREW SHIFT LEVER TO BRACKET M8X30
512
COVERING
515
COVERING
518
COVERING
521
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
524
TAPPING SCREW4.5X13
527
HEXALOBULAR BOLTM6X16
527
SCREW
530
SCREW CLAMP ON BRACKET
533
SCREW PIPE CLAMP
999
WASHER
999
KITCHENETTE
999
KITCHENETTE
999
HOUSING
999
COVER
999
CLIP
999
ELECTRIC CABLE
999
SWITCH
999
COUPLING
999
CONTROL UNIT
999
CONTROL UNIT CENTRAL LUBRICATION
999
CABLE HARNESS
999
CONNECTOR
999
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
INTERIOR LAMP
999
FITTING
999
THROTTLE
999
WASHER
999
CLIP
999
CLIP
999
CONTAINER WATER RESERVOIR
999
CONTAINER
999
BRACKET LEFT
999
VALVE
999
RAIL
999
CUP DISPENSER
999
CUP HOLDER
999
COVERING
999
TAKE-UP DEVICE
999
HINGE
999
FITTING ELBOW FITTING
999
PLATE
999
FILL LEVEL SENSOR
999
HEATING ELEMENT
999
BOILER
999
BOILERVST
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILER
999
CLUTCH
999
CABLE HARNESS
999
COVERING ASHTRAY
999
ASHTRAY
