Mercedes A0007634210 - Выключатель мембранный 3,5 бар

S 417 HDH 629.422

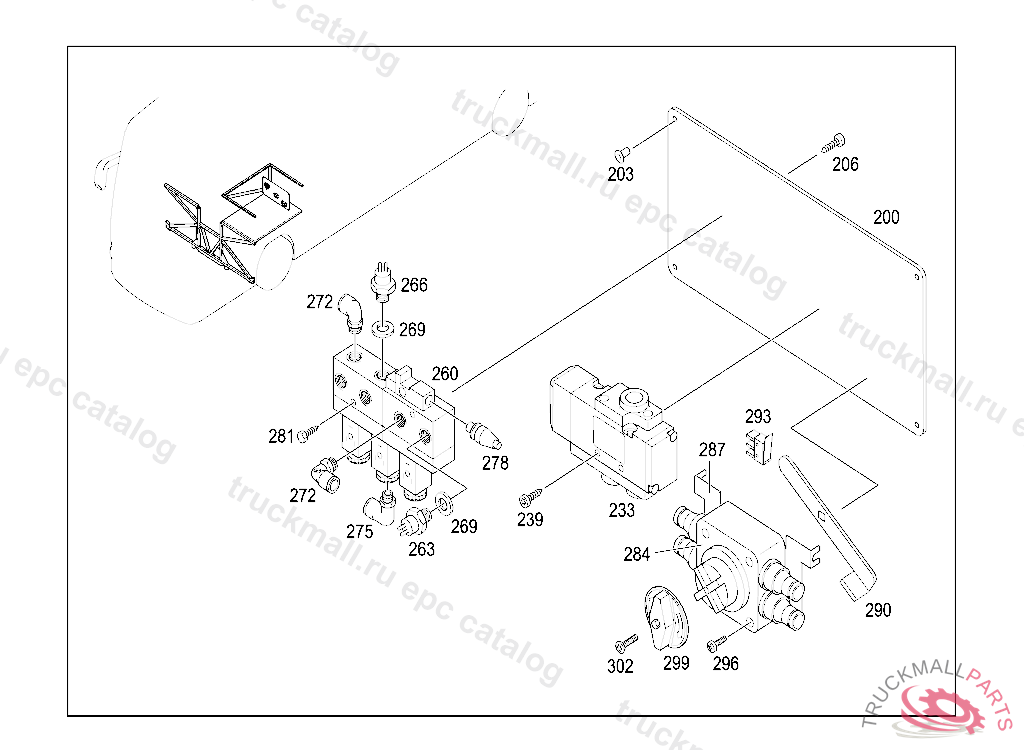

75 OUTSIDE FLAPS - 700 FLAP LOCKING MECHANISM IL. 4

Поз.
Артикул
Описание
200
A6296840127
PLATE
203
A0019907858
NUT
206
N000000002693
TAPPING SCREW5.5X25 T25
233
A0009971112
PIN
239
N000000000519
TAPPING SCREW3.5X25
260
A0007605678
SOLENOID VALVE , Replaced By: A0007607078
260
A0007607078
VALVE
263
A0007632910
SWITCH , Replaced By: A0005452710
266
A0007634210
SWITCH3.5 BAR
269
A0007632054
SEAL
272
A0009973771
FITTING DIA., 6MM, M12X1,5
275
A0009973871
FITTING DIA., 6 MM, M5
278
A0007630864
DAMPER
281
N000000002889
SCREW6X50
284
A0009970512
PNEU. DIR. CONTROL VALVE , Replaced By: A6287602157
287
A0007661469
BRACKET , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 21.01.2010
290
A0007663224
ACTUATING LEVER
290
A0007662224
LEVER , Replaced By: A0007663224
293
A0055458714
SWITCH
296
A0019909820
HEXAL. SOCKET CSK. BOLTM6X10 TX30
299
A0009977077
ROTARY KNOB
302
A0029901020
SCREW
