Mercedes A0008270015 - SCHLIESSBOLZEN

S 417 HDH 629.422

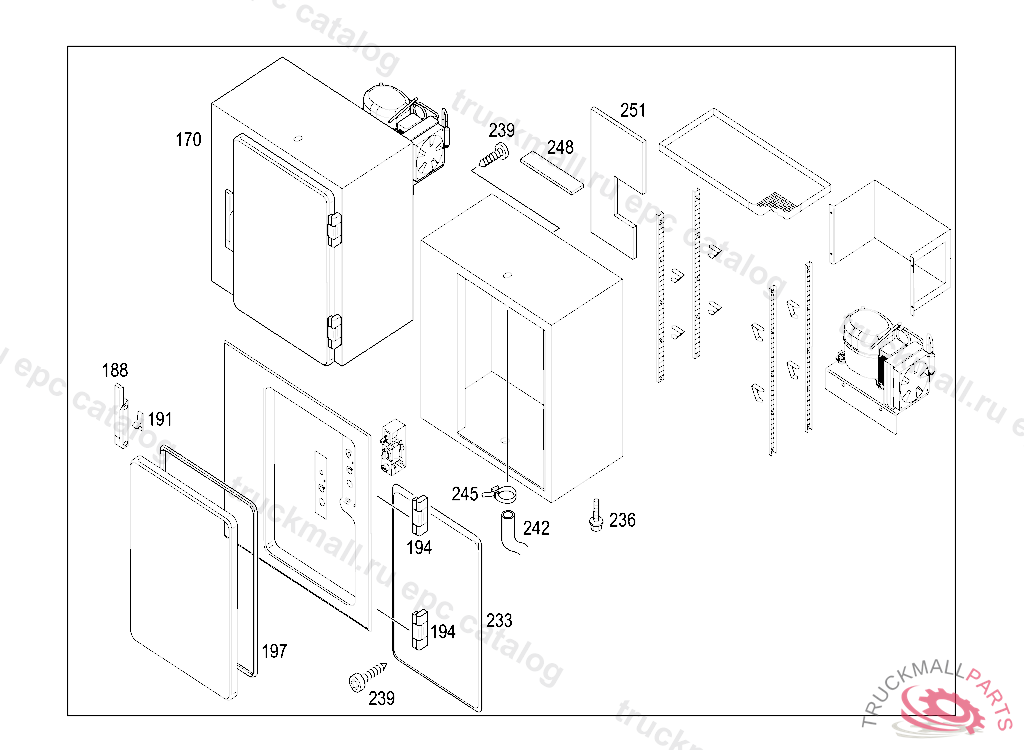

83 HEATING AND VENTILATION - 700 REFRIGERATOR IL. 3

Поз.
Артикул
Описание
170
A6298306460
REFRIGERATOR65 L
170
A6298306360
REFRIGERATOR110 L
188
A0008270818
MOUNTING
191
A0008270015
PIN
194
A0008360352
HINGE
197
A0019970649
GASKET
233
A6298430164
COVER
236
N000000001799
HEXALOBULAR BOLTM8X16
239
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
239
N000000000463
TAPPING SCREW COVER AND BRACKET TO CAB CORNER PILLAR
242
A0009871843
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
245
A0029972390
CABLE TIE , Replaced By: A0049971890
248
A6298350109
COVERING REAR
251
A6298350210
REAR PANEL REAR
999
A0008358214
BRACKET
999
A0009888660
LOCK
999
A0027505784
LOCK MAINTENANCE FLAP
999
A0029972490
CABLE TIE310X5MM
999
Q8011638001
CLOSINGBN 9001
999
Q8011998300
KEYBN 9300
